Search › Model › WE24
WE24

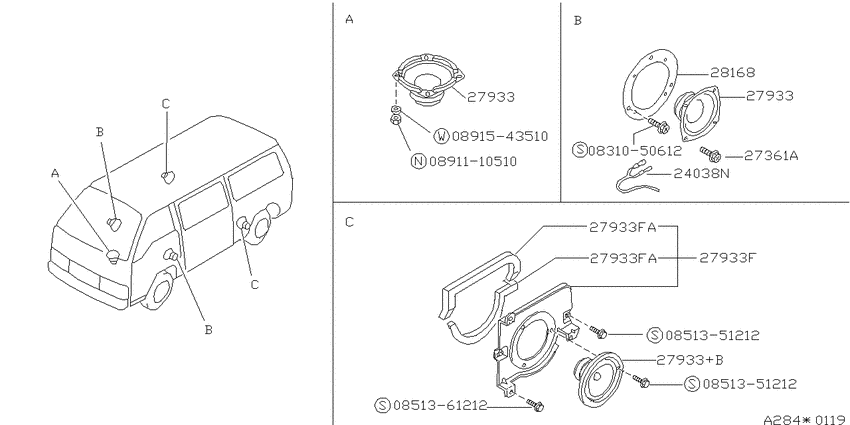

Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) 7
| # | OEM | Part name |
|---|---|---|
| 27361 | 01451-00102 | SCREW |
| 27933 | 28155-04E00 | SPEAKER UNIT |
| 28168 | 28166-01N00 | Bracket-Speaker |
| 831050612 | 08310-50612 | スクリユ-,マシン |
| 851351212 | 08513-51212 | SCREW |
| 851361212 | 08513-61212 | SCREW |
| 891543510 | 08915-43510 | SUPPORT ASSY-FILLER |
| OEM | Part name | Category |
|---|---|---|
| 01451-00102 | SCREW | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 08310-50612 | スクリユ-,マシン | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 08513-51212 | SCREW | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 08513-61212 | SCREW | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 08915-43510 | SUPPORT ASSY-FILLER | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 28155-04E00 | SPEAKER UNIT | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
| 28166-01N00 | Bracket-Speaker | Speaker (1997-05-01 ~ 1999-06-01; ソノ1; K +AMB +B +CH) |
