WE24

Nissan CARAVAN-HOMY · 1993 · 2,943 parts · 436 categories

2,943 items

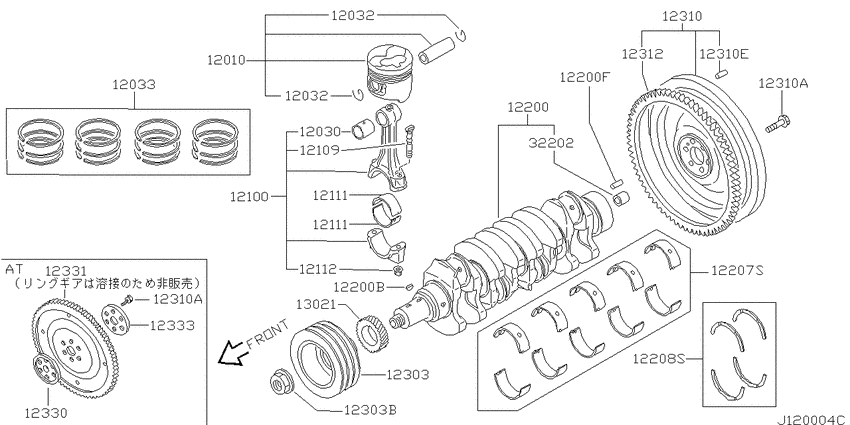

Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32) 65

#	OEM	Part name
12010	12010-2S605	Piston, W/pin
12010	12010-2S615	Piston, W/pin
12010	12010-2S616	Piston, W/pin
12030	12030-2W200	Bush-Piston Pin
12030	12030-1W400	Bush-Piston Pin
12032	12032-2S600	Ring-Snap
12033	12033-2S610	Ring Set-Piston
12033	12033-2S612	Ring Set-Piston
12033	12033-2S613	Ring Set-Piston
12033	12035-2S61C	Ring Set-Piston
12100	12100-1W401	Rod Compl-Connecting
12100	12100-1W40A	Rod Compl-Connecting
12100	12100-1W402	Rod Compl-Connecting
12109	12109-43G00	Bolt-Connecting Rod
12111	12111-2W210	Bearing-Connecting Rod
12111	12117-2W210	Bearing-Connecting Rod
12111	12118-2W20A	Bearing-Connecting Rod
12111	12118-2W210	Bearing-Connecting Rod
12111	12119-2W20A	Bearing-Connecting Rod
12111	12119-2W210	Bearing-Connecting Rod
12111	12120-2W20A	Bearing-Connecting Rod
12111	12120-2W210	Bearing-Connecting Rod
12111	12110-54T10	Bearing Set-Connecting Rod
12111	12110-54T11	Bearing Set-Connecting Rod
12111	12110-54T12	Bearing Set-Connecting Rod
12111	12110-54T13	Bearing Set-Connecting Rod
12111	12110-54T14	Bearing Set-Connecting Rod
12112	12112-43G00	Nut-Connecting Rod
12200	12200-2S606	Crankshaft Assy
12200	12200-2S607	Crankshaft Assy
12200	12200-2S60B	Crankshaft Assy
12200	01522-10224	PIN-CRANKSHAFT
12200	12200-2S605	Crankshaft Assy
12200	12200-2S60A	Crankshaft Assy
12207	12207-2W20A	Bearing Set-Crankshaft
12207	12207-2W211	Bearing Set-Crankshaft
12207	12209-2W211	Bearing Set-Crankshaft
12207	12210-2W211	Bearing Set-Crankshaft
12207	12211-2W211	Bearing Set-Crankshaft
12207	12212-2W211	Bearing Set-Crankshaft
12207	12209-54T10	Bearing Set-Crankshaft
12207	12210-54T10	Bearing Set-Crankshaft
12207	12211-54T10	Bearing Set-Crankshaft
12207	12212-54T10	Bearing Set-Crankshaft
12208	12280-37503	Washer Set-Thrust
12208	12280-37504	Washer Set-Thrust
12208	12280-37505	Washer Set-Thrust
12208	12280-37525	Washer Set-Thrust
12208	12280-37526	Washer Set-Thrust
12208	12280-37527	Washer Set-Thrust
12208	12280-37528	Washer Set-Thrust (OS 0.20)
12208	12280-37529	Washer Set-Thrust
12303	12303-65N00	Pulley-Crankshaft
12303	12309-61503	Nut-Pulley, Crankshaft
12303	12309-Q4000	Nut-pulley,crankshaft
12310	12315-2W200	Bolt-Flywheel
12310	12310-VH010	Flywheel Assy
12310	12310-VH013	Flywheel Assy
12310	12310-VH014	Flywheel Assy
12310	12310-VH020	Flywheel Assy
12312	12312-43G00	Gear-Ring
12312	12312-43G01	Gear-Ring
12331	12331-2S600	Plate Assy-Drive & Gear
13021	13021-43G01	Sprocket-Crankshaft
32202	32202-B9500	Bushing-Crankshaft

OEM	Part name	Category
01522-10224	PIN-CRANKSHAFT	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12010-2S605	Piston, W/pin	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12010-2S615	Piston, W/pin	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12010-2S616	Piston, W/pin	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12030-1W400	Bush-Piston Pin	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12030-2W200	Bush-Piston Pin	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12032-2S600	Ring-Snap	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12033-2S610	Ring Set-Piston	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12033-2S612	Ring Set-Piston	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12033-2S613	Ring Set-Piston	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12035-2S61C	Ring Set-Piston	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12100-1W401	Rod Compl-Connecting	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12100-1W402	Rod Compl-Connecting	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12100-1W40A	Rod Compl-Connecting	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12109-43G00	Bolt-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12110-54T10	Bearing Set-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12110-54T11	Bearing Set-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12110-54T12	Bearing Set-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12110-54T13	Bearing Set-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12110-54T14	Bearing Set-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12111-2W210	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12112-43G00	Nut-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12117-2W210	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12118-2W20A	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12118-2W210	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12119-2W20A	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12119-2W210	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12120-2W20A	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12120-2W210	Bearing-Connecting Rod	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12200-2S605	Crankshaft Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12200-2S606	Crankshaft Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12200-2S607	Crankshaft Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12200-2S60A	Crankshaft Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12200-2S60B	Crankshaft Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12207-2W20A	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12207-2W211	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12209-2W211	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12209-54T10	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12210-2W211	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12210-54T10	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12211-2W211	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12211-54T10	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12212-2W211	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12212-54T10	Bearing Set-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37503	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37504	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37505	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37525	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37526	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37527	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37528	Washer Set-Thrust (OS 0.20)	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12280-37529	Washer Set-Thrust	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12303-65N00	Pulley-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12309-61503	Nut-Pulley, Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12309-Q4000	Nut-pulley,crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12310-VH010	Flywheel Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12310-VH013	Flywheel Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12310-VH014	Flywheel Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12310-VH020	Flywheel Assy	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12312-43G00	Gear-Ring	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12312-43G01	Gear-Ring	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12315-2W200	Bolt-Flywheel	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
12331-2S600	Plate Assy-Drive & Gear	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
13021-43G01	Sprocket-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
32202-B9500	Bushing-Crankshaft	Piston,crankshaft & flywheel (1999-06-01 ~ ; QD32)
