Search › Model › WE24
WE24

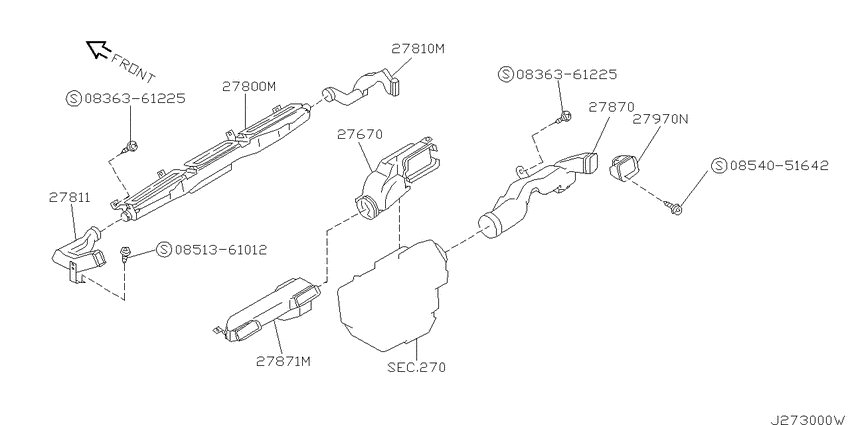

Nozzle & duct (1999-06-01 ~ ; B +AMB) 8
| # | OEM | Part name |
|---|---|---|
| 27800 | 27800-62N00 | Nozzle-Defrostor |
| 27810 | 27810-VH300 | Nozzle-Side Defroster Driver |
| 27810 | 27810-01N00 | Nozzle-Side Demister, Rh |
| 27811 | 27811-01N00 | Nozzle-Side Demister, Lh |
| 27870 | 27870-VH000 | Duct-Side Ventilator |
| 27871 | 27871-01N00 | Duct-Ventilator, Lh |
| 27970 | 27872-01N00 | Duct-Ventilator, Rh |
| 836361225 | 08363-61225 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61225 | スクリユ-,マシン | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27800-62N00 | Nozzle-Defrostor | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27810-01N00 | Nozzle-Side Demister, Rh | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27810-VH300 | Nozzle-Side Defroster Driver | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27811-01N00 | Nozzle-Side Demister, Lh | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27870-VH000 | Duct-Side Ventilator | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27871-01N00 | Duct-Ventilator, Lh | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
| 27872-01N00 | Duct-Ventilator, Rh | Nozzle & duct (1999-06-01 ~ ; B +AMB) |
