WE24

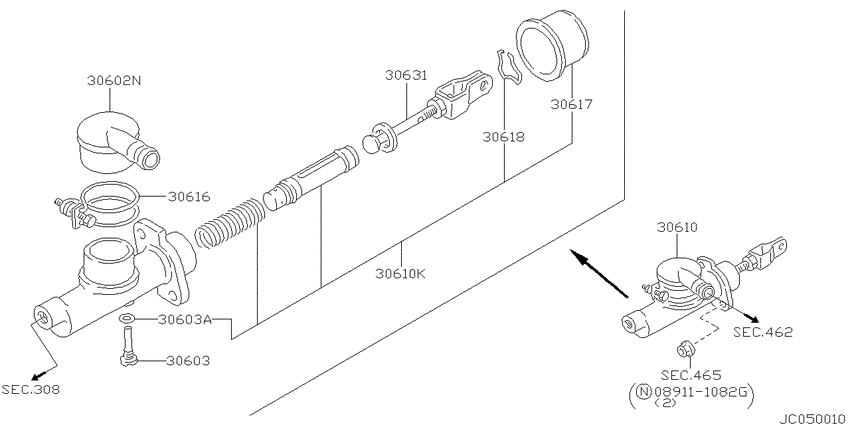

Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) 6
| # | OEM | Part name |
|---|---|---|
| 30602 | 46090-J2001 | Nipple-Clutch Master |
| 30603 | 30672-C8200 | Stopper-Screw |
| 30610 | 30611-0H625 | Piston Kit-Clutch Master Cylinder |
| 30610 | 30611-10V26 | Piston kit-clutch master cylinder |
| 30617 | 30618-N8001 | Cover-Dust |
| 30631 | 30631-1C100 | Rod Assy-Push |
| OEM | Part name | Category |
|---|---|---|
| 30611-0H625 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
| 30611-10V26 | Piston kit-clutch master cylinder | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
| 30618-N8001 | Cover-Dust | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
| 30631-1C100 | Rod Assy-Push | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
| 30672-C8200 | Stopper-Screw | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
| 46090-J2001 | Nipple-Clutch Master | Clutch master cylinder (1997-05-01 ~ 1999-06-01; TD27.MT.F5 +QD32) |
