Search › Model › WE24

WE24

Nissan CARAVAN-HOMY · 1993 · 2,943 parts · 436 categories

2,943 items

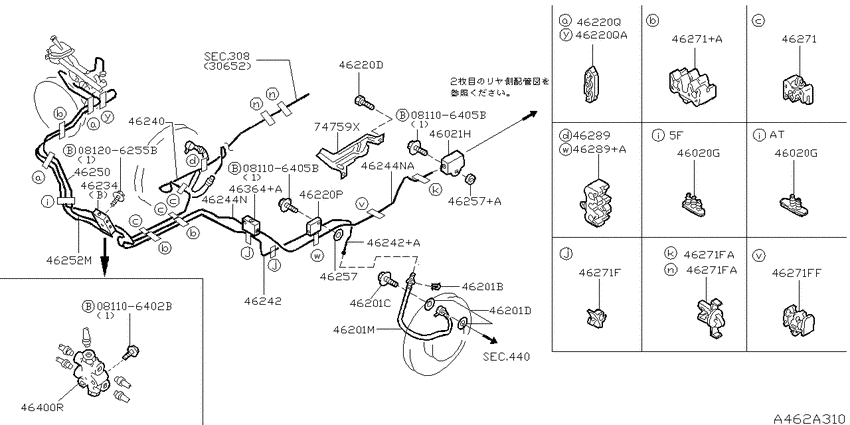

Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH) 55

#	OEM	Part name
46020	46341-R8000	Grommet
46201	46206-2J000	Spring-Lock
46201	46356-0E000	BOLT-UNION,FRONT BRAKE HOSE
46201	46210-58N00	Hose Assy-Brake, Front
46220	01552-00163	CLAMP-TUBE
46220	01561-00243	INSULATOR-TUBE
46240	46240-25N00	Tube Assy-Brake, Front Rh
46240	46240-VH063	Tube Assy-Brake, Front Rh
46240	46240-VH067	Tube Assy-Brake
46240	46240-VH083	Tube Assy-Brake
46240	46240-VH005	Tube Assy-Brake
46242	46242-01N01	Tube Assy-Brake, Front Lh
46242	46242-01N02	Tube Assy-Brake, Front Lh
46242	46242-VH067	Tube Assy-Brake
46242	46242-VH083	Tube Assy-Brake
46242	46242-VH005	Tube Assy-Brake
46244	46244-01N01	Tube Assy-Brake, Front
46244	46244-01N02	Tube Assy-Brake, Front
46250	46250-20N00	Tube Assy-Brake, Front Master Cylinder
46250	46250-VH000	Tube Assy-Brake, Front Master Cylinder
46250	46250-VH300	Tube Assy-Brake, Front Master Cylinder
46250	46250-VH310	Tube Assy-Brake, Front Master Cylinder
46250	46250-VH012	Tube Assy-Brake, Front Master Cylinder
46250	46250-VH067	Tube Assy-Brake
46250	46250-VH005	Tube Assy-Brake
46250	46250-VH065	Tube Assy-Brake
46250	46250-VH084	Tube Assy-Brake
46252	46252-20N00	Tube Assy-Brake, Rear Master
46252	46252-VH000	Tube Assy-Brake, Rear Master Cylinder
46252	46252-VH300	Tube Assy-Brake, Rear Master Cylinder
46252	46252-VH310	Tube Assy-Brake, Rear Master Cylinder
46252	46252-VH012	Tube Assy-Brake, Rear Master Cylinder
46257	46257-21003	Spacer-Brake Tube Connector
46257	46257-EB70A	Spacer-Brake Tube Connector
46257	46257-N4200	Spacer-Brake Tube Connector
46271	46271-01B10	Clip
46271	46271-01E00	CLAMP-BRAKE TUBE
46271	46271-01B20	Clip-Tube, Brake
46271	46271-32R00	Clip-Tube, Brake
46271	46271-01E02	CLIP-TUBE,BRAKE
46271	46271-1C400	Clip-Tube, Brake
46271	46271-W1310	Insulator-Fuel Tube, No 4
46271	46271-01B00	Clamp
46271	46271-08W10	Clamp-Brake Tube
46271	46271-11G10	Clip-Tube, Differential Lock
46271	46271-30V00	Clip-Tube, Brake
46289	46289-01N00	Clamp-Tube
46364	02462-34000	CONNECTOR-BRAKE TUBE
46400	46400-26N00	Valve Assy
46400	46400-26N20	Valve Assy-Load Sensing
74759	74751-01N00	Insulator
74759	74751-58N00	Insulator
81106402	08110-6402B	Bolt-hexagon
81106405	08110-6405B	Bolt-hexagon
81206255	08120-6255B	Bolt-hexagon

OEM	Part name	Category
01552-00163	CLAMP-TUBE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
01561-00243	INSULATOR-TUBE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
02462-34000	CONNECTOR-BRAKE TUBE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
08110-6402B	Bolt-hexagon	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
08110-6405B	Bolt-hexagon	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
08120-6255B	Bolt-hexagon	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46206-2J000	Spring-Lock	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46210-58N00	Hose Assy-Brake, Front	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46240-25N00	Tube Assy-Brake, Front Rh	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46240-VH005	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46240-VH063	Tube Assy-Brake, Front Rh	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46240-VH067	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46240-VH083	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46242-01N01	Tube Assy-Brake, Front Lh	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46242-01N02	Tube Assy-Brake, Front Lh	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46242-VH005	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46242-VH067	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46242-VH083	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46244-01N01	Tube Assy-Brake, Front	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46244-01N02	Tube Assy-Brake, Front	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-20N00	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH000	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH005	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH012	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH065	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH067	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH084	Tube Assy-Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH300	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46250-VH310	Tube Assy-Brake, Front Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46252-20N00	Tube Assy-Brake, Rear Master	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46252-VH000	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46252-VH012	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46252-VH300	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46252-VH310	Tube Assy-Brake, Rear Master Cylinder	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46257-21003	Spacer-Brake Tube Connector	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46257-EB70A	Spacer-Brake Tube Connector	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46257-N4200	Spacer-Brake Tube Connector	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-01B00	Clamp	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-01B10	Clip	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-01B20	Clip-Tube, Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-01E00	CLAMP-BRAKE TUBE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-01E02	CLIP-TUBE,BRAKE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-08W10	Clamp-Brake Tube	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-11G10	Clip-Tube, Differential Lock	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-1C400	Clip-Tube, Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-30V00	Clip-Tube, Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-32R00	Clip-Tube, Brake	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46271-W1310	Insulator-Fuel Tube, No 4	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46289-01N00	Clamp-Tube	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46341-R8000	Grommet	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46356-0E000	BOLT-UNION,FRONT BRAKE HOSE	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46400-26N00	Valve Assy	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
46400-26N20	Valve Assy-Load Sensing	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
74751-01N00	Insulator	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
74751-58N00	Insulator	Brake piping & control (1997-05-01 ~ 1999-06-01; ABS無しフロントパイピング; (K.2WD.(TD27+TD27TI) +K.VG30E +AMB +B +CH)
