Search › Model › WE24
WE24

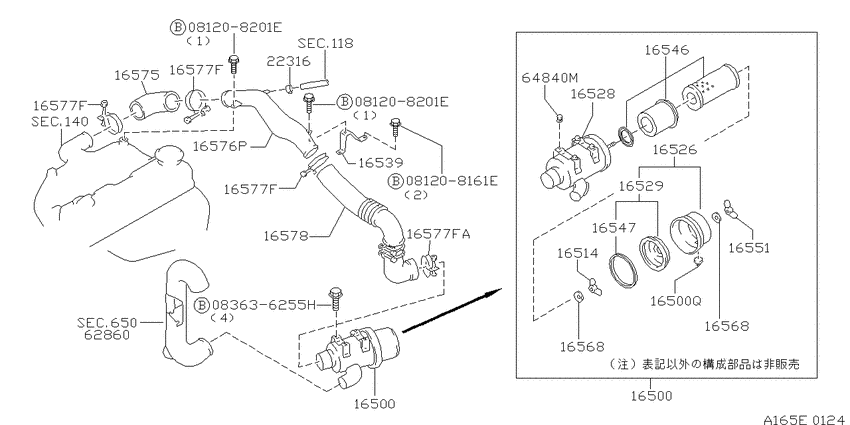

Air cleaner (1999-06-01 ~ ; QD32) 11
| # | OEM | Part name |
|---|---|---|
| 16500 | 16500-02N06 | Air Cleaner |
| 16514 | 16514-37N00 | Nut-Wing |
| 16528 | 16528-02N06 | Body Assy-Air Cleaner |
| 16529 | 16510-02N00 | Divider Assy |
| 16539 | 14017-02N00 | Air Cleaner Support |
| 16568 | 16568-37N00 | Packing |
| 16577 | 01555-00541 | CLAMP-HOSE |
| 16577 | 01555-00561 | CLAMP-HOSE |
| 22316 | 22316-T8000 | Clamp-Hose |
| 64840 | 64840-W5501 | Grommet |
| 83636255 | 08363-6255H | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 01555-00541 | CLAMP-HOSE | Air cleaner (1999-06-01 ~ ; QD32) |
| 01555-00561 | CLAMP-HOSE | Air cleaner (1999-06-01 ~ ; QD32) |
| 08363-6255H | スクリユ-,マシン | Air cleaner (1999-06-01 ~ ; QD32) |
| 14017-02N00 | Air Cleaner Support | Air cleaner (1999-06-01 ~ ; QD32) |
| 16500-02N06 | Air Cleaner | Air cleaner (1999-06-01 ~ ; QD32) |
| 16510-02N00 | Divider Assy | Air cleaner (1999-06-01 ~ ; QD32) |
| 16514-37N00 | Nut-Wing | Air cleaner (1999-06-01 ~ ; QD32) |
| 16528-02N06 | Body Assy-Air Cleaner | Air cleaner (1999-06-01 ~ ; QD32) |
| 16568-37N00 | Packing | Air cleaner (1999-06-01 ~ ; QD32) |
| 22316-T8000 | Clamp-Hose | Air cleaner (1999-06-01 ~ ; QD32) |
| 64840-W5501 | Grommet | Air cleaner (1999-06-01 ~ ; QD32) |
