WD22

Nissan XTERRA · 1999 · 3,467 parts · 243 categories

3,467 items

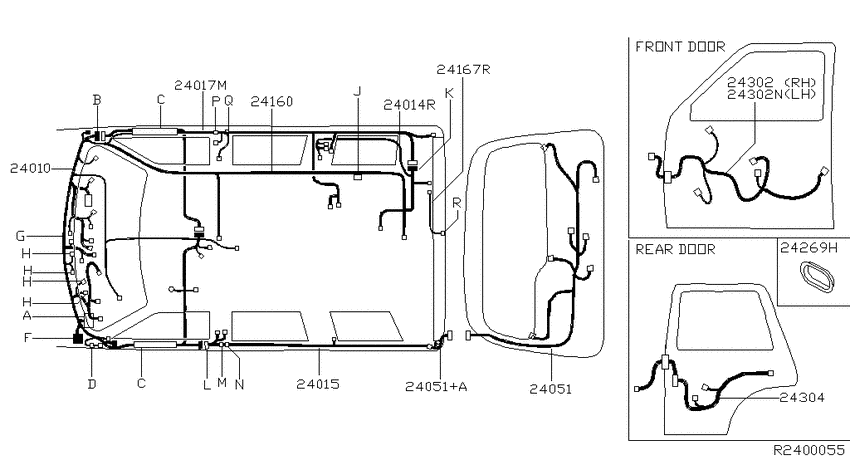

Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER)) 43

#	OEM	Part name
24010	24010-2Z812	Harness-Main
24010	24010-2Z813	Harness-Main
24010	24010-8Z712	Harness-Main
24010	24010-ZD412	Harness-Main
24010	24010-2Z714	Harness-Main
24010	24010-2Z715	Harness-Main
24010	24010-2Z814	Harness-Main
24010	24010-2Z815	Harness-Main
24010	24010-8Z714	Harness-Main
24010	24010-ZD414	Harness-Main
24010	24010-ZD602	Harness-Main
24014	24014-2Z610	Harness-Chassis
24014	24014-8Z805	Harness-Chassis
24015	24015-2Z620	Harness-Tail
24015	24015-2Z720	Harness-Tail
24015	24015-7Z805	Harness-Tail
24015	24015-ZD320	Harness-Tail
24015	24015-ZD420	Harness-Tail
24015	01466-00022	Bolt
24015	01281-00601	GROMMET-SCREW
24017	24017-2Z705	Harness-Sub, Body
24017	24017-2Z720	Harness-Sub, Body
24017	24017-7Z905	Harness-Sub, Body
24051	24051-2Z610	Harness-Back Door
24051	24051-7Z420	Harness-Back Door
24051	24051-ZD310	Harness-Back Door
24051	24070-2Z605	Harness-Back Door
24051	24070-2Z705	Harness-Back Door
24051	24070-7Z420	Harness-Back Door
24051	24070-ZD305	Harness-Back Door
24051	24070-ZD405	Harness-Back Door
24160	24160-2Z620	Harness-Room Lamp
24160	24160-2Z720	Harness-Room Lamp
24160	24160-7Z920	Harness-Room Lamp
24167	24167-7Z000	Harness-Sub, Lamp
24302	24124-1Z605	Harness-Front Door, Rh
24302	24124-7Z810	Harness-Front Door, Rh
24302	24124-7Z815	Harness-Front Door, Rh
24302	24125-2Z605	Harness Assy-Door, Front
24302	24125-7Z810	Harness Assy-Door, Front
24302	24125-7Z815	Harness Assy-Door, Front
24304	24126-2Z600	Harness-Rear Door, Rh
24304	24126-7Z000	Harness-Rear Door, Rh

OEM	Part name	Category
01281-00601	GROMMET-SCREW	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
01466-00022	Bolt	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z714	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z715	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z812	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z813	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z814	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-2Z815	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-8Z712	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-8Z714	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-ZD412	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-ZD414	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24010-ZD602	Harness-Main	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24014-2Z610	Harness-Chassis	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24014-8Z805	Harness-Chassis	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24015-2Z620	Harness-Tail	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24015-2Z720	Harness-Tail	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24015-7Z805	Harness-Tail	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24015-ZD320	Harness-Tail	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24015-ZD420	Harness-Tail	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24017-2Z705	Harness-Sub, Body	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24017-2Z720	Harness-Sub, Body	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24017-7Z905	Harness-Sub, Body	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24051-2Z610	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24051-7Z420	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24051-ZD310	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24070-2Z605	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24070-2Z705	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24070-7Z420	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24070-ZD305	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24070-ZD405	Harness-Back Door	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24124-1Z605	Harness-Front Door, Rh	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24124-7Z810	Harness-Front Door, Rh	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24124-7Z815	Harness-Front Door, Rh	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24125-2Z605	Harness Assy-Door, Front	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24125-7Z810	Harness Assy-Door, Front	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24125-7Z815	Harness Assy-Door, Front	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24126-2Z600	Harness-Rear Door, Rh	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24126-7Z000	Harness-Rear Door, Rh	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24160-2Z620	Harness-Room Lamp	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24160-2Z720	Harness-Room Lamp	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24160-7Z920	Harness-Room Lamp	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
24167-7Z000	Harness-Sub, Lamp	Wiring (2002-09-01 ~ ; BODY; W.(VG33E+VG33ER))
