Search › Model › WD22
WD22

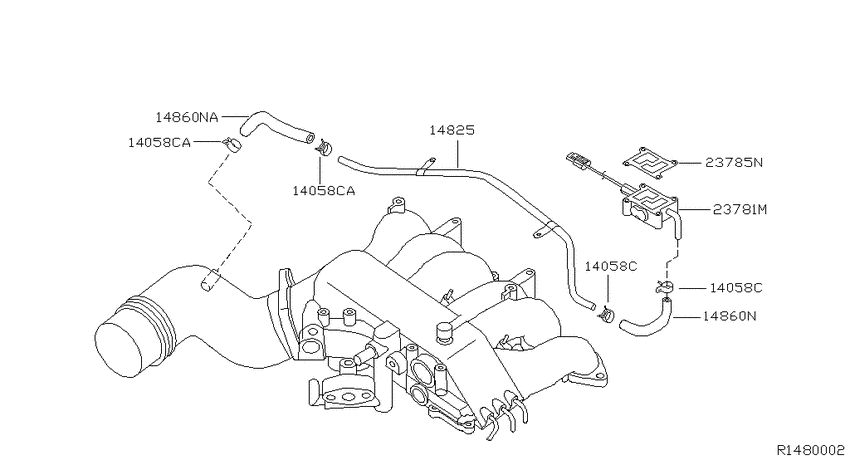

Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) 7
| # | OEM | Part name |
|---|---|---|
| 14058 | 16439-V5000 | Clamp-Hose A |
| 14825 | 14061-4S100 | Pipe Assy-Air |
| 14860 | 14099-4S100 | Hose-Air |
| 14860 | 14099-4S105 | Hose-Air |
| 23781 | 23781-1W600 | Iacv-Aac Valve |
| 23785 | 23785-4S100 | Iacv-Aac Valve Gasket |
| 23785 | 23785-4S101 | Iacv-Aac Valve Gasket |
| OEM | Part name | Category |
|---|---|---|
| 14061-4S100 | Pipe Assy-Air | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 14099-4S100 | Hose-Air | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 14099-4S105 | Hose-Air | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 16439-V5000 | Clamp-Hose A | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 23781-1W600 | Iacv-Aac Valve | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 23785-4S100 | Iacv-Aac Valve Gasket | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
| 23785-4S101 | Iacv-Aac Valve Gasket | Secondary air system (2001-07-01 ~ ; KA24DE +VG33E +VG33ER) |
