Search › Model › WD22
WD22

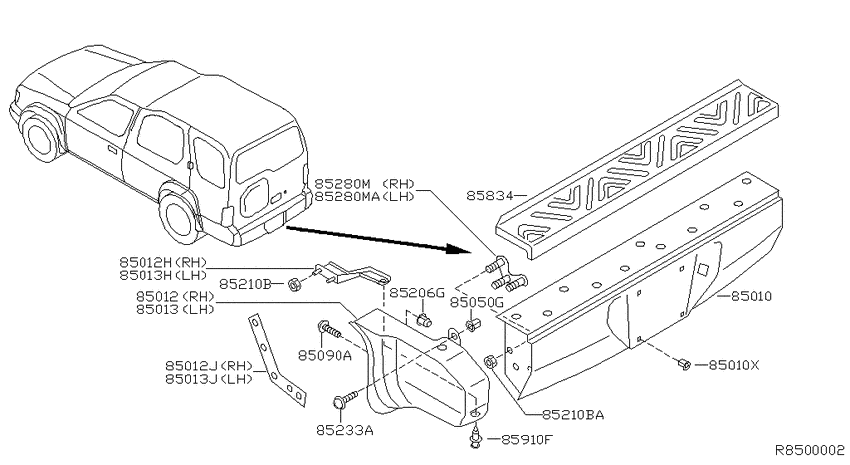

Rear bumper (2001-07-01 ~ ; W) 10
| # | OEM | Part name |
|---|---|---|
| 85012 | 85220-7Z000 | Bracket-rear bumper side,rh |
| 85012 | 85226-7Z300 | Bracket-rear bumper side,rh |
| 85013 | 85221-7Z000 | Bracket-rear bumper side,lh |
| 85013 | 85227-7Z300 | Bracket-rear bumper side,lh |
| 85206 | 01281-0002U | Grommet-Screw |
| 85210 | 01225-0001C | Nut |
| 85233 | 01454-0003U | Screw |
| 85280 | 85276-7B400 | Plate assy-bolt |
| 85280 | 85277-7B400 | Plate assy-bolt |
| 85834 | 85071-7Z000 | Finisher-rear bumper,center |
| OEM | Part name | Category |
|---|---|---|
| 01225-0001C | Nut | Rear bumper (2001-07-01 ~ ; W) |
| 01281-0002U | Grommet-Screw | Rear bumper (2001-07-01 ~ ; W) |
| 01454-0003U | Screw | Rear bumper (2001-07-01 ~ ; W) |
| 85071-7Z000 | Finisher-rear bumper,center | Rear bumper (2001-07-01 ~ ; W) |
| 85220-7Z000 | Bracket-rear bumper side,rh | Rear bumper (2001-07-01 ~ ; W) |
| 85221-7Z000 | Bracket-rear bumper side,lh | Rear bumper (2001-07-01 ~ ; W) |
| 85226-7Z300 | Bracket-rear bumper side,rh | Rear bumper (2001-07-01 ~ ; W) |
| 85227-7Z300 | Bracket-rear bumper side,lh | Rear bumper (2001-07-01 ~ ; W) |
| 85276-7B400 | Plate assy-bolt | Rear bumper (2001-07-01 ~ ; W) |
| 85277-7B400 | Plate assy-bolt | Rear bumper (2001-07-01 ~ ; W) |
