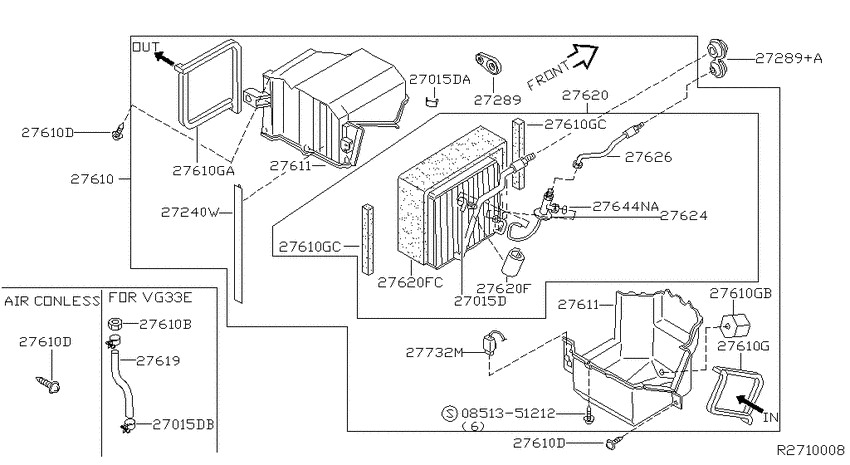

| 01456-00461 |
SCREW |
Cooling unit (2002-09-01 ~ ; W) |
| 08513-51212 |
SCREW |
Cooling unit (2002-09-01 ~ ; W) |
| 21476-B0100 |
Clip-Cooler Case |
Cooling unit (2002-09-01 ~ ; W) |
| 21476-C5500 |
Clip |
Cooling unit (2002-09-01 ~ ; W) |
| 27270-1Z610 |
Cooling Unit Assy |
Cooling unit (2002-09-01 ~ ; W) |
| 27270-7Z400 |
Cooling Unit Assy |
Cooling unit (2002-09-01 ~ ; W) |
| 27270-8Z300 |
Cooling Unit Assy |
Cooling unit (2002-09-01 ~ ; W) |
| 27276-1Z600 |
Cover |
Cooling unit (2002-09-01 ~ ; W) |
| 27280-7Z400 |
Evaporator Assy-Cooler |
Cooling unit (2002-09-01 ~ ; W) |
| 27280-7Z800 |
Evaporator Assy-Cooler |
Cooling unit (2002-09-01 ~ ; W) |
| 27283-7B400 |
Tube-Evaporator Inlet |
Cooling unit (2002-09-01 ~ ; W) |
| 27284-1Z600 |
Case Assy-Cooling Unit |
Cooling unit (2002-09-01 ~ ; W) |
| 27284-9Z001 |
Case Assy-Cooling Unit |
Cooling unit (2002-09-01 ~ ; W) |
| 27287-0W700 |
Seal |
Cooling unit (2002-09-01 ~ ; W) |
| 27287-64J10 |
Seal |
Cooling unit (2002-09-01 ~ ; W) |
| 27287-86Y00 |
Seal |
Cooling unit (2002-09-01 ~ ; W) |
| 27287-8B400 |
Seal |
Cooling unit (2002-09-01 ~ ; W) |
| 27288-4E100 |
INSULATOR |
Cooling unit (2002-09-01 ~ ; W) |
| 27288-8B400 |
Insulator |
Cooling unit (2002-09-01 ~ ; W) |
| 27289-59G00 |
Grommet-Evaporator Tube |
Cooling unit (2002-09-01 ~ ; W) |
| 27732-8J000 |
Sensor Assy-Intake |
Cooling unit (2002-09-01 ~ ; W) |
| 92200-7Z400 |
Valve Assy-Expansion |
Cooling unit (2002-09-01 ~ ; W) |
| 92295-0P000 |
Clip |
Cooling unit (2002-09-01 ~ ; W) |
| 92520-9Z000 |
Clip |
Cooling unit (2002-09-01 ~ ; W) |
| 92560-01J20 |
Grommet |
Cooling unit (2002-09-01 ~ ; W) |
| 92570-01J00 |
Plug-Blind |
Cooling unit (2002-09-01 ~ ; W) |
| 92593-4S100 |
Hose-Drain |
Cooling unit (2002-09-01 ~ ; W) |
