Search › Model › WD22

WD22

Nissan XTERRA · 1999 · 3,467 parts · 243 categories

3,467 items

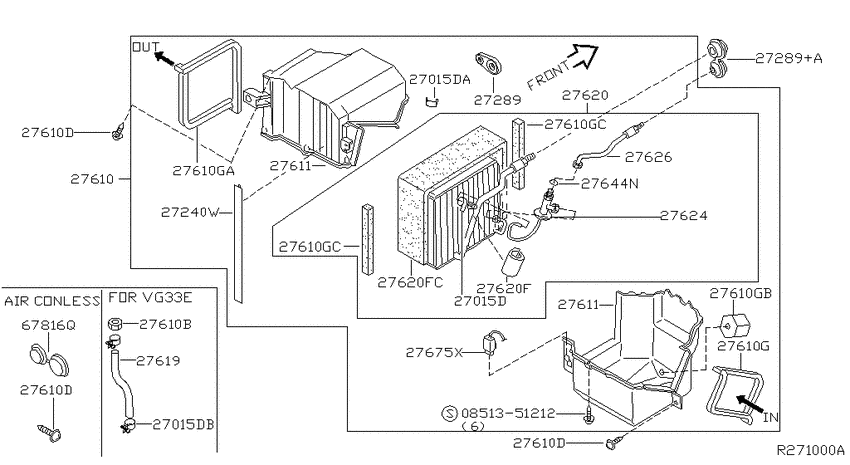

Cooling unit (2001-07-01 ~ 2002-09-01; W) 28

#	OEM	Part name
27015	92295-0P000	Clip
27015	21476-B0100	Clip-Cooler Case
27015	21476-C5500	Clip
27015	92520-9Z000	Clip
27240	27276-1Z600	Cover
27289	27289-59G00	Grommet-Evaporator Tube
27289	92560-01J20	Grommet
27289	92570-01J00	Plug-Blind
27610	27270-1Z610	Cooling Unit Assy
27610	27270-7Z400	Cooling Unit Assy
27610	27270-8Z300	Cooling Unit Assy
27610	01456-00461	SCREW
27610	27287-64J10	Seal
27610	27287-86Y00	Seal
27610	27287-0W700	Seal
27610	27287-8B400	Seal
27611	27284-1Z600	Case Assy-Cooling Unit
27611	27284-9Z001	Case Assy-Cooling Unit
27619	92593-4S100	Hose-Drain
27620	27280-7Z400	Evaporator Assy-Cooler
27620	27280-7Z800	Evaporator Assy-Cooler
27620	27288-4E100	INSULATOR
27620	27288-8B400	Insulator
27624	92200-7Z400	Valve Assy-Expansion
27626	27283-7B400	Tube-Evaporator Inlet
27675	27675-9Z000	Amplifier-Thermo
67816	01658-00971	PLUG-BLIND
851351212	08513-51212	SCREW

OEM	Part name	Category
01456-00461	SCREW	Cooling unit (2001-07-01 ~ 2002-09-01; W)
01658-00971	PLUG-BLIND	Cooling unit (2001-07-01 ~ 2002-09-01; W)
08513-51212	SCREW	Cooling unit (2001-07-01 ~ 2002-09-01; W)
21476-B0100	Clip-Cooler Case	Cooling unit (2001-07-01 ~ 2002-09-01; W)
21476-C5500	Clip	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27270-1Z610	Cooling Unit Assy	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27270-7Z400	Cooling Unit Assy	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27270-8Z300	Cooling Unit Assy	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27276-1Z600	Cover	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27280-7Z400	Evaporator Assy-Cooler	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27280-7Z800	Evaporator Assy-Cooler	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27283-7B400	Tube-Evaporator Inlet	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27284-1Z600	Case Assy-Cooling Unit	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27284-9Z001	Case Assy-Cooling Unit	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27287-0W700	Seal	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27287-64J10	Seal	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27287-86Y00	Seal	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27287-8B400	Seal	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27288-4E100	INSULATOR	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27288-8B400	Insulator	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27289-59G00	Grommet-Evaporator Tube	Cooling unit (2001-07-01 ~ 2002-09-01; W)
27675-9Z000	Amplifier-Thermo	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92200-7Z400	Valve Assy-Expansion	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92295-0P000	Clip	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92520-9Z000	Clip	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92560-01J20	Grommet	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92570-01J00	Plug-Blind	Cooling unit (2001-07-01 ~ 2002-09-01; W)
92593-4S100	Hose-Drain	Cooling unit (2001-07-01 ~ 2002-09-01; W)

Source: Public OEM parts-catalog data
Variants: 2 / 35
Category: 243
Collected: 2026-07-27
