Search › Model › WD22
WD22

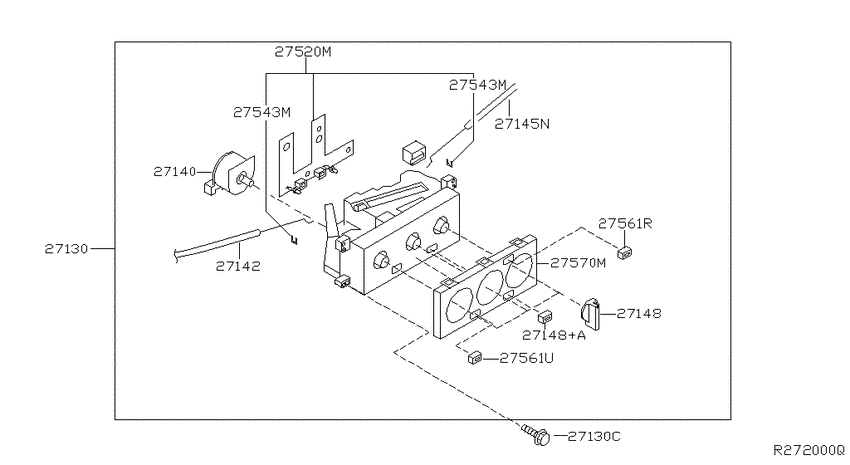

Control unit (2001-07-01 ~ ; W) 12
| # | OEM | Part name |
|---|---|---|
| 27130 | 27510-8Z315 | Controller Assy-Air Conditiner |
| 27130 | 27510-ZD000 | Controller Assy-Air Conditiner |
| 27140 | 27660-8B400 | Switch-Fan |
| 27142 | 27541-7Z400 | Cable-Control, Mode Door |
| 27145 | 27542-7Z102 | Cable-Temperature Control |
| 27148 | 27559-7Z415 | Knob-Control |
| 27148 | 27560-7Z415 | Knob-Control |
| 27520 | 27520-8Z410 | Base-Controller |
| 27543 | 27543-7Z100 | Ring-E |
| 27561 | 27566-7Z815 | Button-Defroster |
| 27561 | 27561-7Z415 | Button-Recirculation |
| 27570 | 27575-7Z810 | Finisher Assy-Controller |
| OEM | Part name | Category |
|---|---|---|
| 27510-8Z315 | Controller Assy-Air Conditiner | Control unit (2001-07-01 ~ ; W) |
| 27510-ZD000 | Controller Assy-Air Conditiner | Control unit (2001-07-01 ~ ; W) |
| 27520-8Z410 | Base-Controller | Control unit (2001-07-01 ~ ; W) |
| 27541-7Z400 | Cable-Control, Mode Door | Control unit (2001-07-01 ~ ; W) |
| 27542-7Z102 | Cable-Temperature Control | Control unit (2001-07-01 ~ ; W) |
| 27543-7Z100 | Ring-E | Control unit (2001-07-01 ~ ; W) |
| 27559-7Z415 | Knob-Control | Control unit (2001-07-01 ~ ; W) |
| 27560-7Z415 | Knob-Control | Control unit (2001-07-01 ~ ; W) |
| 27561-7Z415 | Button-Recirculation | Control unit (2001-07-01 ~ ; W) |
| 27566-7Z815 | Button-Defroster | Control unit (2001-07-01 ~ ; W) |
| 27575-7Z810 | Finisher Assy-Controller | Control unit (2001-07-01 ~ ; W) |
| 27660-8B400 | Switch-Fan | Control unit (2001-07-01 ~ ; W) |
