WD22

Nissan XTERRA · 1999 · 3,467 parts · 243 categories

← Back to categories

3,467 items

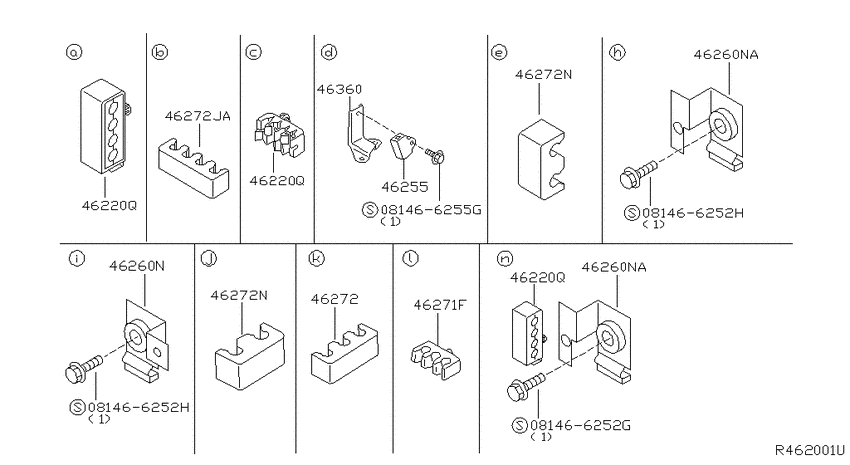

Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER)) 12

#	OEM	Part name
46220	01552-00731	CLIP-TUBE,BRAKE
46260	46260-3S505	Bracket-Brake Tube
46260	46260-3S500	Bracket-Brake Tube
46271	46271-01B00	Clamp
46272	46272-8B400	Clip-Tube, Brake
46272	46272-58A00	Insulator
46272	46272-01G00	Spacer
46272	46272-2S400	Spacer-Brake Tube
46360	46361-4S110	Bracket-Brake Connector
46360	46361-9S200	Bracket-brake connector
81466252	08146-6252H	Bolt-hexagon
81466255	08146-6255G	Bolt-hexagon

OEM	Part name	Category
01552-00731	CLIP-TUBE,BRAKE	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
08146-6252H	Bolt-hexagon	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
08146-6255G	Bolt-hexagon	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46260-3S500	Bracket-Brake Tube	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46260-3S505	Bracket-Brake Tube	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46271-01B00	Clamp	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46272-01G00	Spacer	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46272-2S400	Spacer-Brake Tube	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46272-58A00	Insulator	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46272-8B400	Clip-Tube, Brake	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46361-4S110	Bracket-Brake Connector	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
46361-9S200	Bracket-brake connector	Brake piping & control (2002-09-01 ~ ; CLAMP & INSULATOR; W.(VG33E+VG33ER))
