Search › Model › WD22
WD22

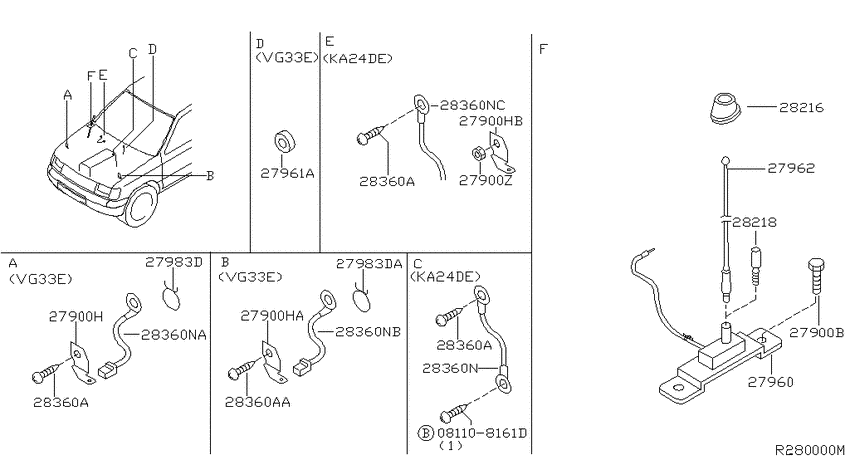

Audio & visual (2001-07-01 ~ ; ANTENNA; W) 9
| # | OEM | Part name |
|---|---|---|
| 27900 | 28365-19G00 | Terminal-Earth |
| 27960 | 28206-3S500 | Antenna Assy |
| 27962 | 28215-5M000 | Rod-Antenna |
| 27983 | 24220-9B900 | Clip |
| 28216 | 28216-3S600 | Base-Antenna |
| 28218 | 28218-61A00 | Cap-Antenna |
| 28360 | 28360-49L00 | Wire-Bonding |
| 28360 | 28360-V5014 | Wire-Bonding |
| 81108161 | 08110-8161D | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08110-8161D | Bolt-hexagon | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 24220-9B900 | Clip | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28206-3S500 | Antenna Assy | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28215-5M000 | Rod-Antenna | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28216-3S600 | Base-Antenna | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28218-61A00 | Cap-Antenna | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28360-49L00 | Wire-Bonding | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28360-V5014 | Wire-Bonding | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
| 28365-19G00 | Terminal-Earth | Audio & visual (2001-07-01 ~ ; ANTENNA; W) |
