WD21

Nissan TERRANO · 1986 · 6,504 parts · 241 categories

6,504 items

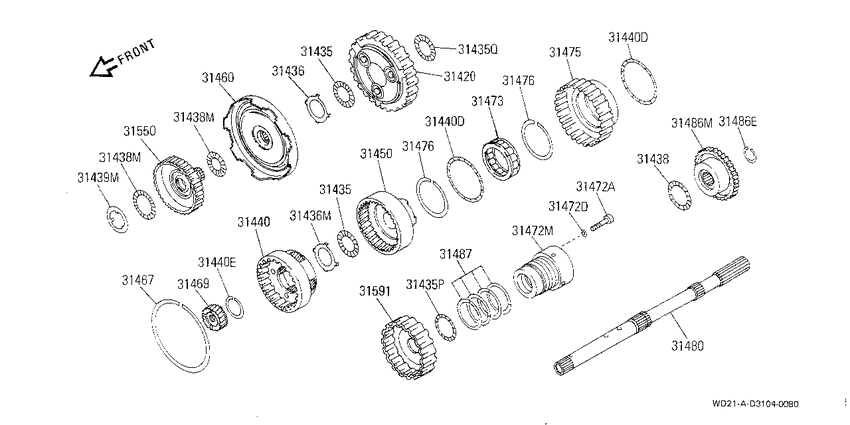

planetary gear (1989-10-01 ~ ; VG30E) 45

#	OEM	Part name
31420	31420-41X02	Carrier Assy-Front Planet
31420	31420-41X03	Carrier Assy-Front Planet
31420	31420-41X08	Carrier Assy-Front Planet
31435	31435-21X00	Bearing-Needle, Thrust
31435	31407-41X04	Bearing-Needle, Thrust
31435	31407-41X11	Bearing-Needle, Thrust
31436	31464-21X00	Race-Bearing
31436	31435-41X00	Race-Bearing
31438	31438-X0100	Bearing-Needle, Thrust
31439	31439-21X00	Race-Bearing
31440	31440-41X08	Carrier Assy-Rear Planet
31440	31440-41X11	Carrier Assy-Rear Planet
31440	31440-41X21	Carrier Assy-Rear Planet
31440	31508-41X00	Washer-Thrust
31440	31506-41X02	Ring-Snap
31450	31450-41X02	Gear Assy-Internal
31460	31460-41X01	Gear Assy-Sun
31460	31460-41X02	Gear Assy-Sun
31467	31506-41X00	Ring-Snap
31467	31506-41X11	Ring-Snap
31469	31469-41X03	Gear-Sun, Rear
31472	31377-41X01	Bolt
31472	31378-41X00	Washer-Plain
31472	31472-41X00	Race-Inner, One Way Clutch
31472	31472-41X01	Race-Inner, One Way Clutch
31473	31484-41X00	Clutch Assy-One Way
31473	31506-41X03	Ring-Snap, Foward Clutch
31473	31506-41X10	Ring-Snap, Foward Clutch
31473	31473-41X00	Clutch Assy-Low, One Way
31473	31571-41X26	Clutch assy-low,one way
31473	31473-41X02	Clutch Assy-Low, One Way
31475	31487-41X00	Race-Outer, One Way Clutch
31476	31506-41X04	Ring-Snap
31480	31480-41X02	Shaft Assy-Output
31480	31480-41X11	Shaft Assy-Output
31486	31506-41X01	Ring-Snap
31486	31486-41X00	Gear-Parking
31487	31525-41X00	Ring-Seal
31550	31550-41X00	Hub-Clutch, High
31550	31550-41X02	Hub-Clutch, High
31550	31550-41X04	Hub-Clutch, High
31550	31407-41X15	Bearing-Needle, Thrust
31550	31407-41X14	Bearing-Needle, Thrust
31550	31460-41X06	Gear assy-sun
31591	31591-41X00	Hub-Overrun Clutch

OEM	Part name	Category
31377-41X01	Bolt	planetary gear (1989-10-01 ~ ; VG30E)
31378-41X00	Washer-Plain	planetary gear (1989-10-01 ~ ; VG30E)
31407-41X04	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31407-41X11	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31407-41X14	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31407-41X15	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31420-41X02	Carrier Assy-Front Planet	planetary gear (1989-10-01 ~ ; VG30E)
31420-41X03	Carrier Assy-Front Planet	planetary gear (1989-10-01 ~ ; VG30E)
31420-41X08	Carrier Assy-Front Planet	planetary gear (1989-10-01 ~ ; VG30E)
31435-21X00	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31435-41X00	Race-Bearing	planetary gear (1989-10-01 ~ ; VG30E)
31438-X0100	Bearing-Needle, Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31439-21X00	Race-Bearing	planetary gear (1989-10-01 ~ ; VG30E)
31440-41X08	Carrier Assy-Rear Planet	planetary gear (1989-10-01 ~ ; VG30E)
31440-41X11	Carrier Assy-Rear Planet	planetary gear (1989-10-01 ~ ; VG30E)
31440-41X21	Carrier Assy-Rear Planet	planetary gear (1989-10-01 ~ ; VG30E)
31450-41X02	Gear Assy-Internal	planetary gear (1989-10-01 ~ ; VG30E)
31460-41X01	Gear Assy-Sun	planetary gear (1989-10-01 ~ ; VG30E)
31460-41X02	Gear Assy-Sun	planetary gear (1989-10-01 ~ ; VG30E)
31460-41X06	Gear assy-sun	planetary gear (1989-10-01 ~ ; VG30E)
31464-21X00	Race-Bearing	planetary gear (1989-10-01 ~ ; VG30E)
31469-41X03	Gear-Sun, Rear	planetary gear (1989-10-01 ~ ; VG30E)
31472-41X00	Race-Inner, One Way Clutch	planetary gear (1989-10-01 ~ ; VG30E)
31472-41X01	Race-Inner, One Way Clutch	planetary gear (1989-10-01 ~ ; VG30E)
31473-41X00	Clutch Assy-Low, One Way	planetary gear (1989-10-01 ~ ; VG30E)
31473-41X02	Clutch Assy-Low, One Way	planetary gear (1989-10-01 ~ ; VG30E)
31480-41X02	Shaft Assy-Output	planetary gear (1989-10-01 ~ ; VG30E)
31480-41X11	Shaft Assy-Output	planetary gear (1989-10-01 ~ ; VG30E)
31484-41X00	Clutch Assy-One Way	planetary gear (1989-10-01 ~ ; VG30E)
31486-41X00	Gear-Parking	planetary gear (1989-10-01 ~ ; VG30E)
31487-41X00	Race-Outer, One Way Clutch	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X00	Ring-Snap	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X01	Ring-Snap	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X02	Ring-Snap	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X03	Ring-Snap, Foward Clutch	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X04	Ring-Snap	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X10	Ring-Snap, Foward Clutch	planetary gear (1989-10-01 ~ ; VG30E)
31506-41X11	Ring-Snap	planetary gear (1989-10-01 ~ ; VG30E)
31508-41X00	Washer-Thrust	planetary gear (1989-10-01 ~ ; VG30E)
31525-41X00	Ring-Seal	planetary gear (1989-10-01 ~ ; VG30E)
31550-41X00	Hub-Clutch, High	planetary gear (1989-10-01 ~ ; VG30E)
31550-41X02	Hub-Clutch, High	planetary gear (1989-10-01 ~ ; VG30E)
31550-41X04	Hub-Clutch, High	planetary gear (1989-10-01 ~ ; VG30E)
31571-41X26	Clutch assy-low,one way	planetary gear (1989-10-01 ~ ; VG30E)
31591-41X00	Hub-Overrun Clutch	planetary gear (1989-10-01 ~ ; VG30E)
