Search › Model › WD21

WD21

Nissan TERRANO · 1986 · 6,504 parts · 241 categories

6,504 items

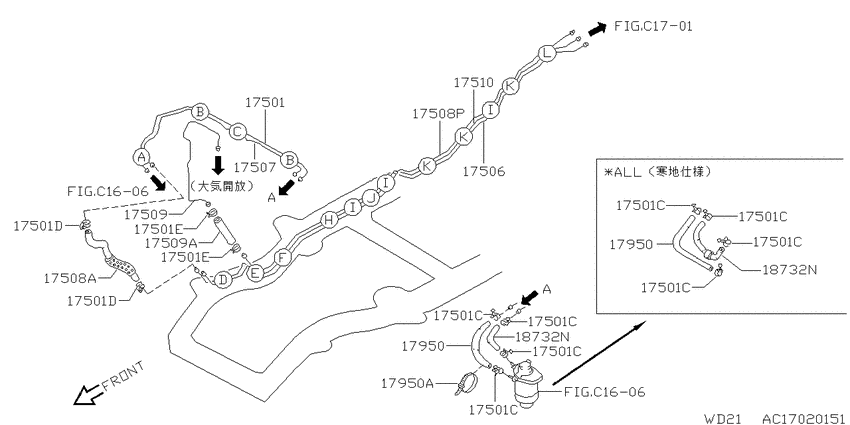

Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL) 26

#	OEM	Part name
17501	17503-43G00	Tube-Fuel
17501	01555-00191	CLAMP
17501	16439-N4710	Clamp-Hose
17501	16439-N2100	Clamp-Hose
17501	17558-41G00	Hose-Fuel
17501	17558-41G01	Hose-Fuel
17506	17506-43G00	Tube-Fuel, No 2
17506	17506-50G00	Tube-Fuel, No 2
17507	17507-43G00	Tube-Fuel, Feed
17508	17553-41G00	Hose-Breather
17508	17553-50G00	Hose-Breather
17508	17338-41G00	Tube-Evapolation
17508	17338-50G00	Tube-Evapolation
17509	17339-44G00	Tube-Breather
17509	17339-50G01	Tube-Breather
17509	02187-34423	HOSE-BREATHER
17509	02187-51421	HOSE-EMISSION CONTROL
17510	17510-43G00	Tube-Fuel Return
17510	17510-50G00	Tube-Fuel Return
17510	17555-41G00	Hose-Return
17510	17555-43G00	Hose-Return
17950	02187-53221	HOSE-EMISSION CONTROL
17950	08740-26031	HOSE-FUEL
17950	08740-29031	HOSE-FUEL
17950	01552-00401	CLIP-WIRING HARNESS
18732	17556-43G01	Hose-Fuel

OEM	Part name	Category
01552-00401	CLIP-WIRING HARNESS	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
01555-00191	CLAMP	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
02187-34423	HOSE-BREATHER	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
02187-51421	HOSE-EMISSION CONTROL	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
02187-53221	HOSE-EMISSION CONTROL	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
08740-26031	HOSE-FUEL	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
08740-29031	HOSE-FUEL	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
16439-N2100	Clamp-Hose	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
16439-N4710	Clamp-Hose	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17338-41G00	Tube-Evapolation	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17338-50G00	Tube-Evapolation	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17339-44G00	Tube-Breather	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17339-50G01	Tube-Breather	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17503-43G00	Tube-Fuel	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17506-43G00	Tube-Fuel, No 2	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17506-50G00	Tube-Fuel, No 2	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17507-43G00	Tube-Fuel, Feed	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17510-43G00	Tube-Fuel Return	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17510-50G00	Tube-Fuel Return	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17553-41G00	Hose-Breather	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17553-50G00	Hose-Breather	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17555-41G00	Hose-Return	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17555-43G00	Hose-Return	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17556-43G01	Hose-Fuel	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17558-41G00	Hose-Fuel	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)
17558-41G01	Hose-Fuel	Fuel piping (1986-08-01 ~ 1987-08-01; 全体図; ALL)

Source: Public OEM parts-catalog data
Variants: 2 / 30
Category: 241
Collected: 2026-07-29
