Search › Model › WD21

WD21

Nissan TERRANO · 1986 · 6,504 parts · 241 categories

6,504 items

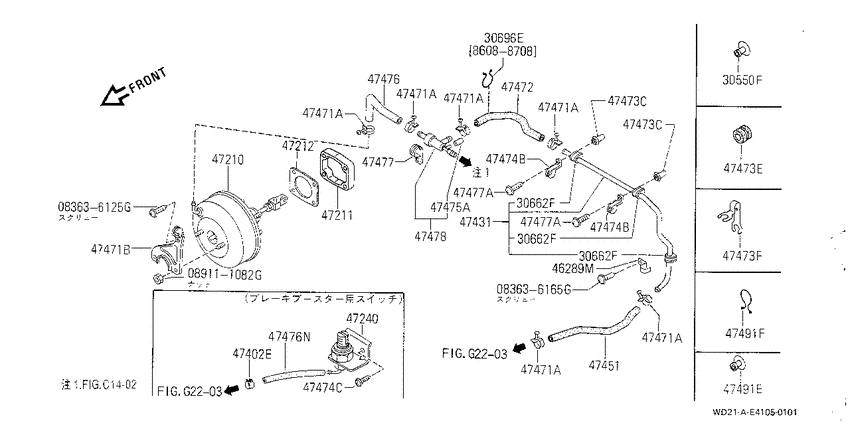

brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL) 23

#	OEM	Part name
30696	01552-00071	LOCK-PURSE
46289	46289-89913	Clip
47210	47210-16G00	Booster Assy-Brake
47210	47210-16G10	Booster Assy-Brake
47210	47210-42G15	Booster Assy-Brake
47210	47210-80G01	Booster Assy-Brake
47212	47212-D0100	Packing-Booster
47431	47476-18G00	Tube-Vacuum
47451	47474-44G00	Hose-Vacuum
47471	01555-00211	CLAMP-HOSE
47471	16439-17B00	Clip
47471	47473-15G00	Bracket-Magnetic Valve
47471	47473-U9600	Clip-Vacuum Hose
47472	47472-44G00	Hose-Vacuum
47473	62035-Q0101	Grommet-Screw
47474	46289-15G00	Clip-Vacuum Hose
47475	47479-U0500	Hose-Valve
47476	47471-88G00	Hose-Vacuum
47477	47477-U0500	Plug-Vacuum Connector
47477	01461-00601	SCREW
47478	47478-01G02	Valve Assy-Check
47478	47478-01G10	Valve Assy-Check
83636125	08363-6125G	Screw

OEM	Part name	Category
01461-00601	SCREW	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
01552-00071	LOCK-PURSE	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
01555-00211	CLAMP-HOSE	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
08363-6125G	Screw	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
16439-17B00	Clip	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
46289-15G00	Clip-Vacuum Hose	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
46289-89913	Clip	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47210-16G00	Booster Assy-Brake	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47210-16G10	Booster Assy-Brake	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47210-42G15	Booster Assy-Brake	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47210-80G01	Booster Assy-Brake	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47212-D0100	Packing-Booster	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47471-88G00	Hose-Vacuum	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47472-44G00	Hose-Vacuum	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47473-15G00	Bracket-Magnetic Valve	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47473-U9600	Clip-Vacuum Hose	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47474-44G00	Hose-Vacuum	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47476-18G00	Tube-Vacuum	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47477-U0500	Plug-Vacuum Connector	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47478-01G02	Valve Assy-Check	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47478-01G10	Valve Assy-Check	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
47479-U0500	Hose-Valve	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)
62035-Q0101	Grommet-Screw	brake servo & servo control (1986-08-01 ~ 1987-08-01; ALL)

Source: Public OEM parts-catalog data
Variants: 2 / 30
Category: 241
Collected: 2026-07-29
