Search › Model › WD21
WD21

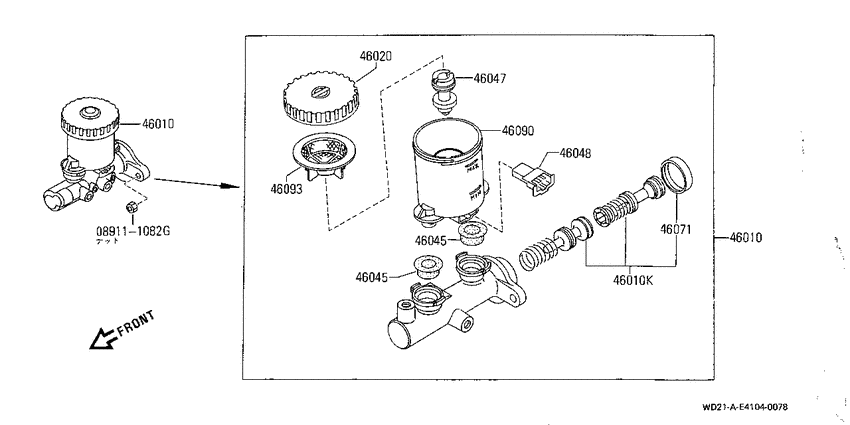

Brake master cylinder (1986-08-01 ~ ; ALL) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-41G00 | Cylinder Assy-Brake Master |
| 46010 | 46010-V7400 | Cylinder Assy-Brake Master |
| 46010 | 46011-25G26 | Piston Kit-Tandem Brake Master Cylinder |
| 46010 | 46011-V5026 | Piston Kit-Tandem Brake Master Cylinder |
| 46047 | 46047-V5010 | Float-Reservoir Tank |
| 46071 | 46082-01A1A | Ring-Snap |
| 46090 | 46091-V5010 | Tank-Oil Reservoir |
| 46093 | 46093-V5010 | Strainer-Brake Oil |
| OEM | Part name | Category |
|---|---|---|
| 46010-41G00 | Cylinder Assy-Brake Master | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46010-V7400 | Cylinder Assy-Brake Master | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46011-25G26 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46011-V5026 | Piston Kit-Tandem Brake Master Cylinder | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46047-V5010 | Float-Reservoir Tank | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46082-01A1A | Ring-Snap | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46091-V5010 | Tank-Oil Reservoir | Brake master cylinder (1986-08-01 ~ ; ALL) |
| 46093-V5010 | Strainer-Brake Oil | Brake master cylinder (1986-08-01 ~ ; ALL) |
