WC34

Nissan STAGEA · 1996 · 3,868 parts · 496 categories

3,868 items

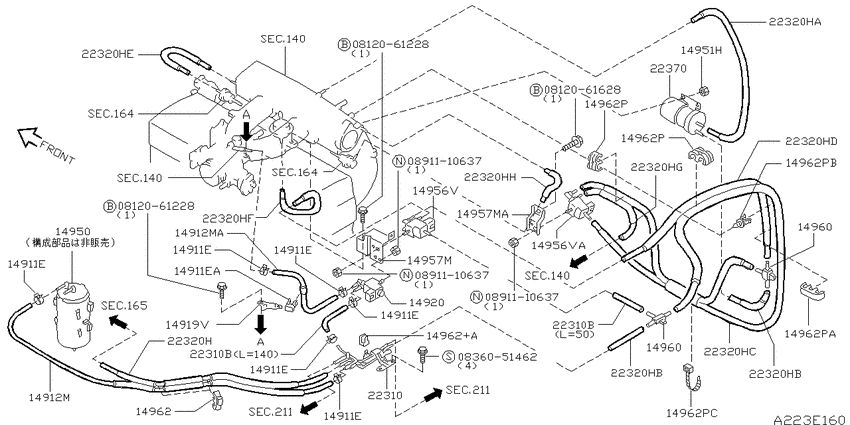

Vacuum piping (1999-08-01 ~ ; RB20DE) 31

#	OEM	Part name
14911	16439-U6801	Clamp-Hose, B
14911	16439-5L300	Clamp-Hose
14912	22320-5L703	Hose-Evap Control
14912	22320-5L705	Hose-Evap Control
14919	14919-5L701	Bracket-Hose
14920	14930-AA000	Valve Assy-Control
14950	14950-27Y00	Canister Assy-Evaporation
14951	01221-00241	NUT
14956	14956-38U01	Valve Assy-Solenoid
14956	14956-38U10	Valve Assy-Solenoid
14957	14957-5L300	Bracket-Valve
14957	14957-AA000	Bracket-Valve
14960	14960-W1304	Connector, A
14962	16439-5L710	Clamp-Hose, B
14962	16439-5L320	Clamp-Hose, B
14962	24220-1P600	Clip
14962	24220-AA001	Clamp-Hose, B
14962	24220-5L300	Clamp-Hose, B
14962	24220-AA010	Clamp-Hose, B
22310	22310-5L700	Gallery Assy-Vacuum
22320	22320-5L702	Hose-Vacuum Control, B
22320	22320-5L700	Hose-Vacuum Control, B
22320	22320-AA001	Hose-Vacuum Control, B
22320	22320-AA002	Hose-Vacuum Control, B
22320	22320-AA003	Hose-Vacuum Control, B
22320	22320-AA005	Hose-Vacuum Control, B
22320	22320-4P220	Hose-Vacuum Control, B
22320	22320-AA006	Hose-Vacuum Control, B
22320	22320-5L704	Hose-Vacuum Control, B
22370	22370-5L300	Tank Assy-Pressure
836051462	08360-51462	スクリユ-,マシン

OEM	Part name	Category
01221-00241	NUT	Vacuum piping (1999-08-01 ~ ; RB20DE)
08360-51462	スクリユ-,マシン	Vacuum piping (1999-08-01 ~ ; RB20DE)
14919-5L701	Bracket-Hose	Vacuum piping (1999-08-01 ~ ; RB20DE)
14930-AA000	Valve Assy-Control	Vacuum piping (1999-08-01 ~ ; RB20DE)
14950-27Y00	Canister Assy-Evaporation	Vacuum piping (1999-08-01 ~ ; RB20DE)
14956-38U01	Valve Assy-Solenoid	Vacuum piping (1999-08-01 ~ ; RB20DE)
14956-38U10	Valve Assy-Solenoid	Vacuum piping (1999-08-01 ~ ; RB20DE)
14957-5L300	Bracket-Valve	Vacuum piping (1999-08-01 ~ ; RB20DE)
14957-AA000	Bracket-Valve	Vacuum piping (1999-08-01 ~ ; RB20DE)
14960-W1304	Connector, A	Vacuum piping (1999-08-01 ~ ; RB20DE)
16439-5L300	Clamp-Hose	Vacuum piping (1999-08-01 ~ ; RB20DE)
16439-5L320	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
16439-5L710	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
16439-U6801	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22310-5L700	Gallery Assy-Vacuum	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-4P220	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-5L700	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-5L702	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-5L703	Hose-Evap Control	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-5L704	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-5L705	Hose-Evap Control	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-AA001	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-AA002	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-AA003	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-AA005	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22320-AA006	Hose-Vacuum Control, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
22370-5L300	Tank Assy-Pressure	Vacuum piping (1999-08-01 ~ ; RB20DE)
24220-1P600	Clip	Vacuum piping (1999-08-01 ~ ; RB20DE)
24220-5L300	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
24220-AA001	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
24220-AA010	Clamp-Hose, B	Vacuum piping (1999-08-01 ~ ; RB20DE)
