WC34

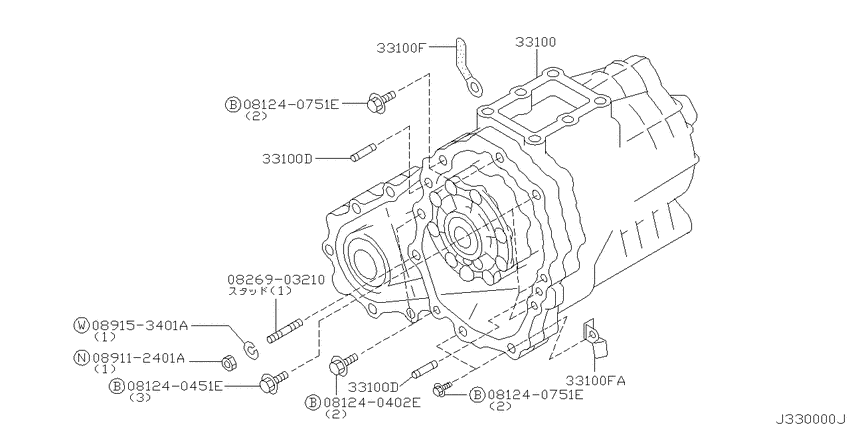

Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) 5
| # | OEM | Part name |
|---|---|---|
| 33100 | 33100-23U00 | Transfer Assy |
| 81240402 | 08124-0402E | Bolt-hexagon |
| 81240451 | 08124-0451E | Bolt-hexagon |
| 81240751 | 08124-0751E | Bolt-hexagon |
| 826903210 | 08269-03210 | スタツド |
| OEM | Part name | Category |
|---|---|---|
| 08124-0402E | Bolt-hexagon | Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) |
| 08124-0451E | Bolt-hexagon | Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) |
| 08124-0751E | Bolt-hexagon | Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) |
| 08269-03210 | スタツド | Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) |
| 33100-23U00 | Transfer Assy | Transfer assembly & fitting (1999-08-01 ~ ; !RB20DE.(20G+20X) +RB25DE +RB25DET) |
