WC34

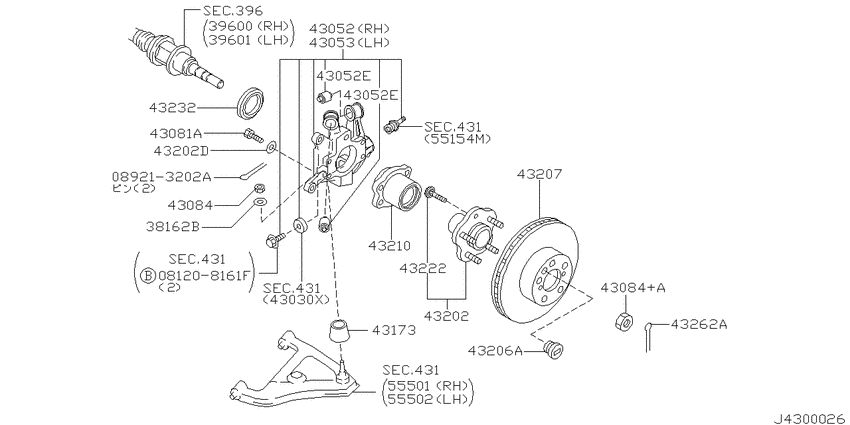

Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) 12
| # | OEM | Part name |
|---|---|---|
| 38162 | 40256-33P00 | Washer-Plain |
| 43052 | 43018-24U00 | Housing-Rear Axle, Rh |
| 43053 | 43019-24U00 | Housing-Rear Axle, Lh |
| 43081 | 43083-33P00 | Bolt |
| 43084 | 40262-33P00 | Nut-Lock |
| 43202 | 43202-40P11 | Hub Assy-Rear |
| 43202 | 43202-AA300 | Hub Assy-Rear |
| 43202 | 40256-30P00 | Washer |
| 43207 | 43206-4P200 | Rotor-Disc Brake, Rear |
| 43207 | 43206-AG915 | Rotor-Disc Brake, Rear |
| 43210 | 43280-40P05 | Bearing-Rear Axle, Inner |
| 43210 | 43281-40P05 | Bearing-Rear Axle, Inner |
| OEM | Part name | Category |
|---|---|---|
| 40256-30P00 | Washer | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 40256-33P00 | Washer-Plain | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 40262-33P00 | Nut-Lock | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43018-24U00 | Housing-Rear Axle, Rh | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43019-24U00 | Housing-Rear Axle, Lh | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43083-33P00 | Bolt | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43202-40P11 | Hub Assy-Rear | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43202-AA300 | Hub Assy-Rear | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43206-4P200 | Rotor-Disc Brake, Rear | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43206-AG915 | Rotor-Disc Brake, Rear | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43280-40P05 | Bearing-Rear Axle, Inner | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
| 43281-40P05 | Bearing-Rear Axle, Inner | Rear axle (1999-08-01 ~ ; MT; RB25DET.MT) |
