WC34

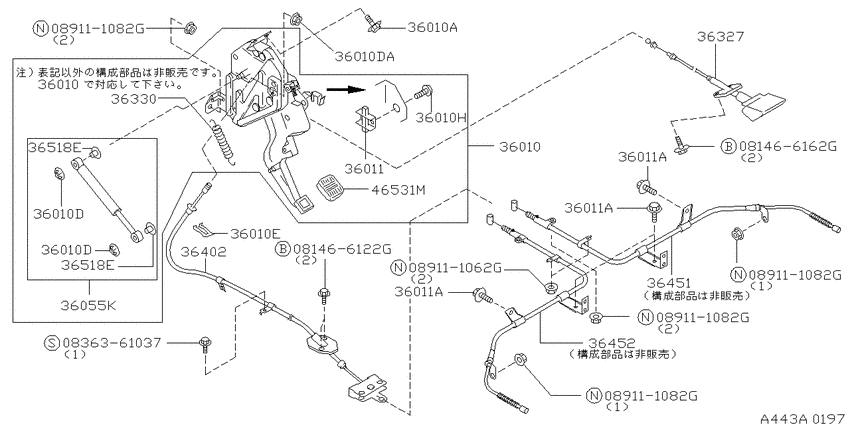

Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) 7
| # | OEM | Part name |
|---|---|---|
| 36010 | 36385-18000 | Nut |
| 36011 | 36011-50Y00 | Switch Assy-Parking Brake Lamp |
| 36011 | 54459-0P005 | Bolt |
| 36451 | 36530-0V000 | Cable Assy-Brake, Rear Rh |
| 36452 | 36531-0V000 | Cable Assy-Brake, Rear Lh |
| 36518 | 36057-F2700 | Bush |
| 836361037 | 08363-61037 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-61037 | スクリユ-,マシン | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 36011-50Y00 | Switch Assy-Parking Brake Lamp | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 36057-F2700 | Bush | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 36385-18000 | Nut | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 36530-0V000 | Cable Assy-Brake, Rear Rh | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 36531-0V000 | Cable Assy-Brake, Rear Lh | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
| 54459-0P005 | Bolt | Parking brake control (1999-08-01 ~ ; RB20DE +RB25DE +RB25DET.AT) |
