Search › Model › WC34
WC34

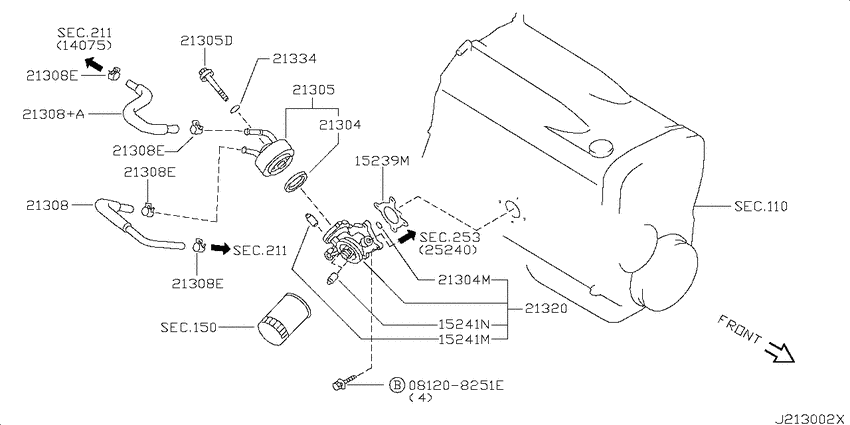

Oil cooler (1998-08-01 ~ ; RB25DET) 10
| # | OEM | Part name |
|---|---|---|
| 15241 | 15241-17F00 | Valve Assy-Relief, Oil Cooler |
| 15241 | 15241-17F0A | Valve Assy-Relief, Oil Cooler |
| 15241 | 15241-16A01 | Valve Assy-Regulator |
| 21304 | 21304-JK20A | Ring-Rubber |
| 21305 | 21305-21U10 | Cooler Assy-Oil |
| 21308 | 21307-AG500 | Hose-Water |
| 21308 | 16439-17B00 | Clip |
| 21320 | 21340-AA500 | Bracket-Oil Cooler Mounting |
| 21334 | 21334-30F0A | Seal-0 Ring |
| 81208251 | 08120-8251E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8251E | Bolt-hexagon | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 15241-16A01 | Valve Assy-Regulator | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 15241-17F00 | Valve Assy-Relief, Oil Cooler | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 15241-17F0A | Valve Assy-Relief, Oil Cooler | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 16439-17B00 | Clip | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 21304-JK20A | Ring-Rubber | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 21305-21U10 | Cooler Assy-Oil | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 21307-AG500 | Hose-Water | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 21334-30F0A | Seal-0 Ring | Oil cooler (1998-08-01 ~ ; RB25DET) |
| 21340-AA500 | Bracket-Oil Cooler Mounting | Oil cooler (1998-08-01 ~ ; RB25DET) |
