WC34

Nissan STAGEA · 1996 · 3,868 parts · 496 categories

3,868 items

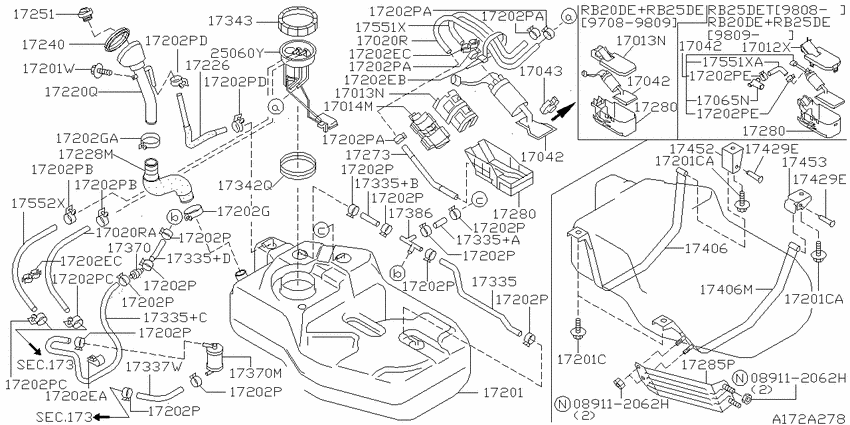

Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET) 31

#	OEM	Part name
17012	17012-3M200	Bracket-Fuel Pump
17020	08740-45039	HOSE-FUEL
17020	01995-00141	HOSE-FUEL
17042	17042-0V710	Pump Assy-Fuel
17042	17042-0V715	Pump Assy-Fuel
17201	17202-0V000	Tank Assy-Fuel
17201	01121-03981	BOLT
17201	17598-0V000	Bolt
17201	01466-00171	SCREW
17202	01552-00481	CLAMP
17202	24220-79917	Clip
17202	01555-00461	CLAMP
17202	01555-00721	CLAMP
17202	01558-00401	CLAMP-HOSE
17202	16439-35F15	Clamp
17202	16439-0V000	Clamp
17220	17221-0V000	Tube Assy-Filler
17220	17221-0V001	Tube Assy-Filler
17240	17240-50Y00	Grommet-Filler Base
17280	17280-3M200	Chamber Assy-Fuel Tank
17285	17285-05U00	Protector-Fuel Tank
17335	17335-0V002	Hose-Evaporation
17335	17335-0V004	Hose-Evaporation
17337	17337-0V001	Hose-Evapolation
17406	17406-0V000	Band Assy-Fuel Tank Mounting
17406	17407-0V000	Band Assy-Fuel Tank, Mounting
17453	17453-0V000	Bracket-Fuel Tank Mounting, Rear
17551	17551-0V710	Hose-Fuel
17552	17552-0V000	Hose-Fuel
25060	25060-0V010	Sender Unit-Fuel Gauge
25060	25060-0V011	Sender Unit-Fuel Gauge

OEM	Part name	Category
01121-03981	BOLT	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01466-00171	SCREW	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01552-00481	CLAMP	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01555-00461	CLAMP	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01555-00721	CLAMP	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01558-00401	CLAMP-HOSE	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
01995-00141	HOSE-FUEL	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
08740-45039	HOSE-FUEL	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
16439-0V000	Clamp	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
16439-35F15	Clamp	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17012-3M200	Bracket-Fuel Pump	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17042-0V710	Pump Assy-Fuel	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17042-0V715	Pump Assy-Fuel	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17202-0V000	Tank Assy-Fuel	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17221-0V000	Tube Assy-Filler	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17221-0V001	Tube Assy-Filler	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17240-50Y00	Grommet-Filler Base	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17280-3M200	Chamber Assy-Fuel Tank	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17285-05U00	Protector-Fuel Tank	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17335-0V002	Hose-Evaporation	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17335-0V004	Hose-Evaporation	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17337-0V001	Hose-Evapolation	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17406-0V000	Band Assy-Fuel Tank Mounting	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17407-0V000	Band Assy-Fuel Tank, Mounting	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17453-0V000	Bracket-Fuel Tank Mounting, Rear	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17551-0V710	Hose-Fuel	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17552-0V000	Hose-Fuel	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
17598-0V000	Bolt	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
24220-79917	Clip	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
25060-0V010	Sender Unit-Fuel Gauge	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
25060-0V011	Sender Unit-Fuel Gauge	Fuel tank (1998-08-01 ~ 1999-08-01; RB20DE +RB25DE +RB25DET)
