Search › Model › WC34
WC34

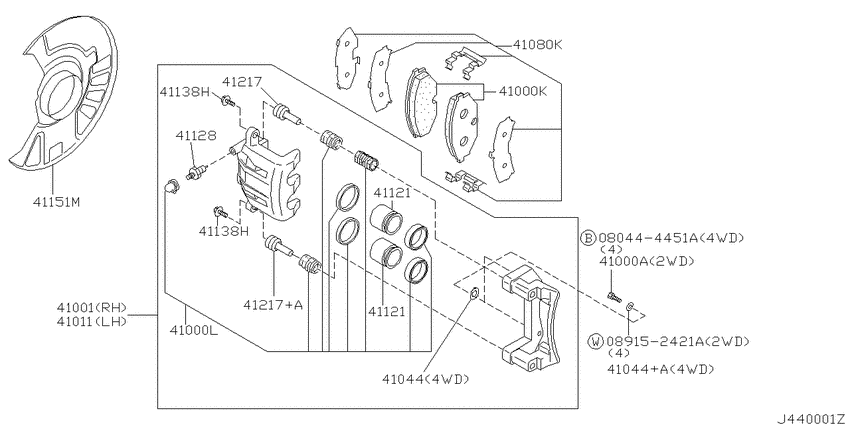

Front brake (1998-08-01 ~ ; RB25DET) 11
| # | OEM | Part name |
|---|---|---|
| 41001 | 41001-0V700 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41011 | 41011-0V700 | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41044 | 41044-6P010 | Washer |
| 41044 | 41044-0V700 | Washer |
| 41080 | 41080-0V725 | Hardware Kit-Front Disc Brake Pad |
| 41128 | 41128-05U00 | Screw-Bleeder |
| 41138 | 44141-N9500 | Pin-Bolt |
| 41151 | 41151-0V700 | Plate-Baffle |
| 41151 | 41161-0V700 | Plate-Baffle |
| 41217 | 44139-0V700 | Pin |
| 80444451 | 08044-4451A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08044-4451A | Bolt-hexagon | Front brake (1998-08-01 ~ ; RB25DET) |
| 41001-0V700 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (1998-08-01 ~ ; RB25DET) |
| 41011-0V700 | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (1998-08-01 ~ ; RB25DET) |
| 41044-0V700 | Washer | Front brake (1998-08-01 ~ ; RB25DET) |
| 41044-6P010 | Washer | Front brake (1998-08-01 ~ ; RB25DET) |
| 41080-0V725 | Hardware Kit-Front Disc Brake Pad | Front brake (1998-08-01 ~ ; RB25DET) |
| 41128-05U00 | Screw-Bleeder | Front brake (1998-08-01 ~ ; RB25DET) |
| 41151-0V700 | Plate-Baffle | Front brake (1998-08-01 ~ ; RB25DET) |
| 41161-0V700 | Plate-Baffle | Front brake (1998-08-01 ~ ; RB25DET) |
| 44139-0V700 | Pin | Front brake (1998-08-01 ~ ; RB25DET) |
| 44141-N9500 | Pin-Bolt | Front brake (1998-08-01 ~ ; RB25DET) |
