Search › Model › WC34
WC34

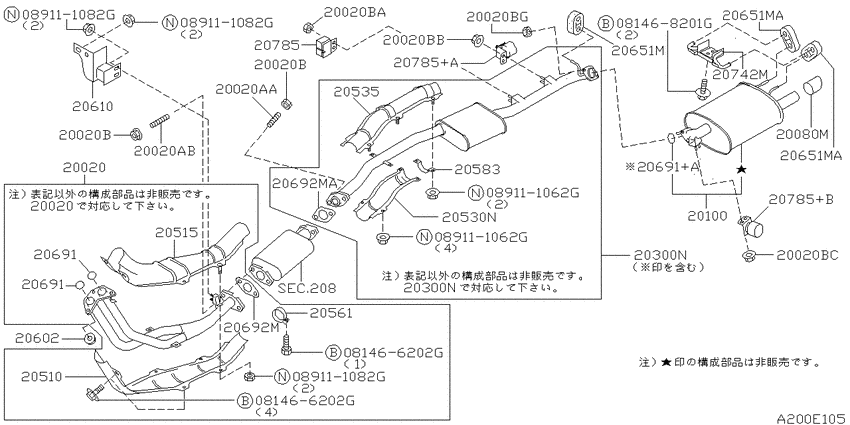

Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) 11
| # | OEM | Part name |
|---|---|---|
| 20020 | 20020-5L785 | Tube Assy-Exhaust, Front |
| 20300 | 20300-0V585 | Muffler Assy-Exhaust, Sub |
| 20510 | 20510-5L710 | Insulator-Heat, Exhaust Tube Front Lower |
| 20515 | 20515-5L710 | Insulator-Heat, Exhaust Tube Front Upper |
| 20535 | 20535-0V510 | Insulator Assy-Center Tube, Upper |
| 20602 | 20602-41G00 | Nut-Fix, Exhaust Tube |
| 20651 | 20651-04U10 | Mounting-Exhaust, Rubber |
| 20742 | 20742-0V010 | Mounting Assy-Exhaust, Rubber |
| 20785 | 20785-0V010 | Insulator-Exhaust, Dynamic Damper |
| 20785 | 20785-AA005 | Insulator-Exhaust, Dynamic Damper |
| 81468201 | 08146-8201G | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08146-8201G | Bolt-hexagon | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20020-5L785 | Tube Assy-Exhaust, Front | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20300-0V585 | Muffler Assy-Exhaust, Sub | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20510-5L710 | Insulator-Heat, Exhaust Tube Front Lower | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20515-5L710 | Insulator-Heat, Exhaust Tube Front Upper | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20535-0V510 | Insulator Assy-Center Tube, Upper | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20602-41G00 | Nut-Fix, Exhaust Tube | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20651-04U10 | Mounting-Exhaust, Rubber | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20742-0V010 | Mounting Assy-Exhaust, Rubber | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20785-0V010 | Insulator-Exhaust, Dynamic Damper | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
| 20785-AA005 | Insulator-Exhaust, Dynamic Damper | Exhaust tube & muffler (1999-08-01 ~ ; RB20DE) |
