Search › Model › WC34
WC34

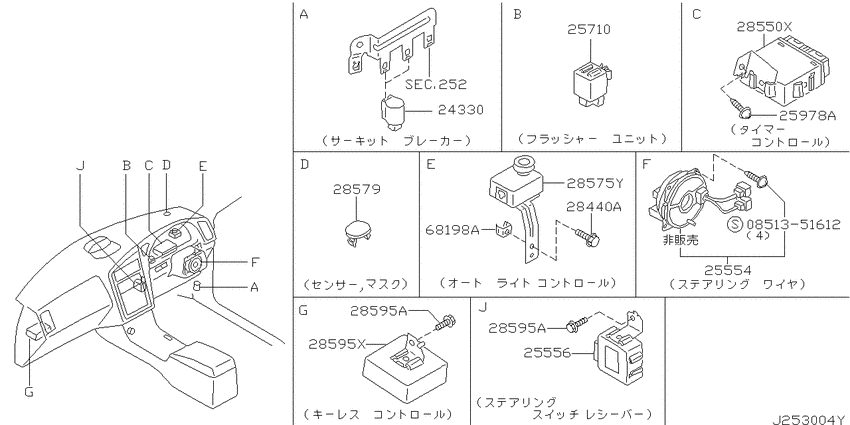

Electrical unit (1999-08-01 ~ ; インスト; W) 10
| # | OEM | Part name |
|---|---|---|
| 25554 | 25554-5L386 | Wire Assy-Steering Air Bag |
| 25554 | 25554-5L389 | Wire assy-steering air bag |
| 25554 | 01141-00441 | BOLT |
| 25554 | 25554-5L326 | Wire Assy-Steering Air Bag |
| 25554 | 25554-5L388 | Wire Assy-Steering Air Bag |
| 25710 | 25731-41B00 | Flasher Unit |
| 25978 | 01466-00022 | Bolt |
| 28550 | 28550-0V700 | Control Assy-Timer |
| 28595 | 28595-0V005 | Controler Assy-Key Less |
| 851351612 | 08513-51612 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 01141-00441 | BOLT | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 01466-00022 | Bolt | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 08513-51612 | SCREW | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 25554-5L326 | Wire Assy-Steering Air Bag | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 25554-5L386 | Wire Assy-Steering Air Bag | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 25554-5L388 | Wire Assy-Steering Air Bag | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 25554-5L389 | Wire assy-steering air bag | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 25731-41B00 | Flasher Unit | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 28550-0V700 | Control Assy-Timer | Electrical unit (1999-08-01 ~ ; インスト; W) |
| 28595-0V005 | Controler Assy-Key Less | Electrical unit (1999-08-01 ~ ; インスト; W) |
