Search › Model › WC34
WC34

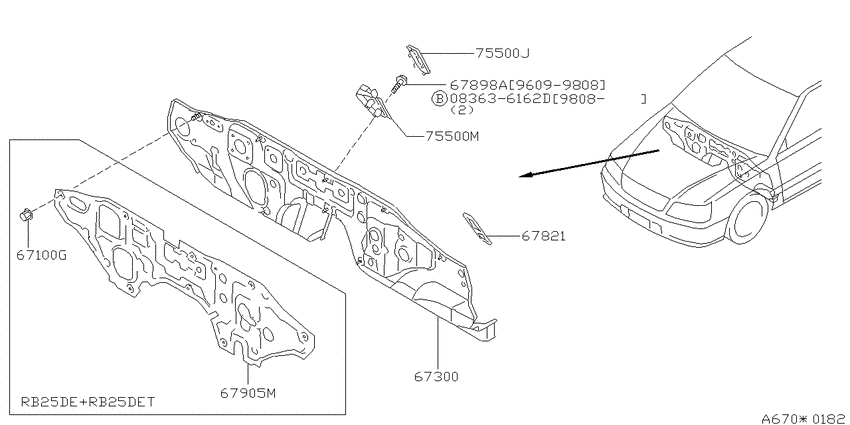

Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) 9
| # | OEM | Part name |
|---|---|---|
| 67300 | 67300-0V730 | Dash-Lower |
| 67300 | 67300-24U35 | Dash-Lower |
| 67300 | 67300-81T30 | Dash-Lower |
| 67821 | 67313-70T00 | Cover-Clutch Master Cylinder Hole |
| 67905 | 67810-24U00 | Insulator-Dash Lower, Front |
| 67905 | 67810-70T00 | Insulator-Dash Lower, Front |
| 75500 | 67845-70T00 | Cover-Footrest |
| 83636162 | 08363-6162D | スクリユ-,マシン |
| 83636162 | 08360-6162D | Screw |
| OEM | Part name | Category |
|---|---|---|
| 08360-6162D | Screw | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 08363-6162D | スクリユ-,マシン | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67300-0V730 | Dash-Lower | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67300-24U35 | Dash-Lower | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67300-81T30 | Dash-Lower | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67313-70T00 | Cover-Clutch Master Cylinder Hole | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67810-24U00 | Insulator-Dash Lower, Front | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67810-70T00 | Insulator-Dash Lower, Front | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
| 67845-70T00 | Cover-Footrest | Dash panel & fitting (1998-08-01 ~ 1999-08-01; W) |
