Search › Model › WC34
WC34

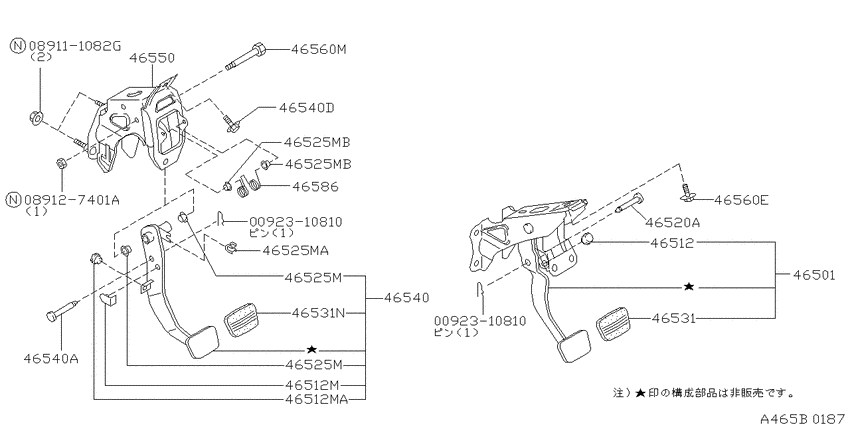

Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) 8
| # | OEM | Part name |
|---|---|---|
| 46512 | 46584-5P010 | Stopper-Rubber |
| 46520 | 46123-03W10 | Pin-Clevis |
| 46525 | 46525-50J00 | Bush-Pedal |
| 46540 | 46540-0V700 | Pedal Assy-Clutch |
| 46550 | 46550-0V700 | Bracket Assy-Clutch Pedal |
| 46586 | 46571-0V700 | Spring-Return |
| 89127401 | 08912-74010 | NUTHEX |
| 92310810 | 00923-10810 | PIN-SNAP |
| OEM | Part name | Category |
|---|---|---|
| 00923-10810 | PIN-SNAP | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 08912-74010 | NUTHEX | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46123-03W10 | Pin-Clevis | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46525-50J00 | Bush-Pedal | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46540-0V700 | Pedal Assy-Clutch | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46550-0V700 | Bracket Assy-Clutch Pedal | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46571-0V700 | Spring-Return | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
| 46584-5P010 | Stopper-Rubber | Brake & clutch pedal (1998-08-01 ~ ; RB25DET.MT) |
