Search › Model › WC34

WC34

Nissan STAGEA · 1996 · 3,868 parts · 496 categories

3,868 items

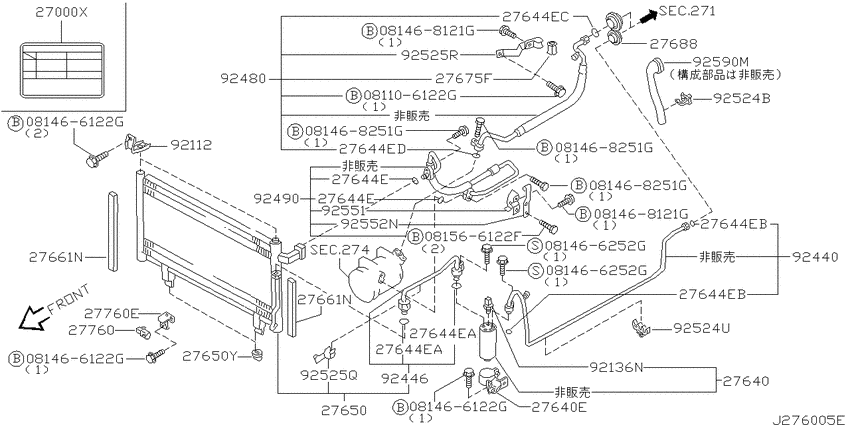

air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE) 21

#	OEM	Part name
27000	27090-79910	Label-Air Conditioner
27640	92135-70T01	Bracket-Liquid Tank
27644	92471-N8210	O Ring
27650	92110-0V510	コンデンサ- アツセンブリ-
27661	92185-70T00	Seal-Rubber
27661	92184-4P000	Seal-Rubber
27688	92560-56F00	Grommet-Dash
27760	27722-31U00	Sensor Assy-Ambient
27760	27715-0V700	ブラケツト,アンビエントセンサ-
92112	92112-70T00	ブラケツトアツセンブリ-,コンデンサ-
92136	92136-6J001	Sensor Assy-Pressure
92440	92440-0V501	パイプ,フロントク-ラ- ハイ
92480	92480-0V512	ホ-ス,フレキシブルロウ
92524	01552-01021	CLIP
92525	92553-0V500	クリツプ
92551	92551-5L300	Bracket-Pipe
92552	92552-5L300	Bracket-Tube Clip
92590	92590-70T00	Hose-Drain
81106122	08110-6122G	Bolt-hexagon
81468121	08146-8121G	Bolt-hexagon
81566122	08156-6122F	Bolt-hexagon

OEM	Part name	Category
01552-01021	CLIP	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
08110-6122G	Bolt-hexagon	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
08146-8121G	Bolt-hexagon	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
08156-6122F	Bolt-hexagon	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
27090-79910	Label-Air Conditioner	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
27715-0V700	ブラケツト,アンビエントセンサ-	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
27722-31U00	Sensor Assy-Ambient	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92110-0V510	コンデンサ- アツセンブリ-	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92112-70T00	ブラケツトアツセンブリ-,コンデンサ-	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92135-70T01	Bracket-Liquid Tank	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92136-6J001	Sensor Assy-Pressure	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92184-4P000	Seal-Rubber	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92185-70T00	Seal-Rubber	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92440-0V501	パイプ,フロントク-ラ- ハイ	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92471-N8210	O Ring	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92480-0V512	ホ-ス,フレキシブルロウ	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92551-5L300	Bracket-Pipe	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92552-5L300	Bracket-Tube Clip	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92553-0V500	クリツプ	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92560-56F00	Grommet-Dash	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
92590-70T00	Hose-Drain	air conditioner (engine room) (1999-08-01 ~ 2000-03-01; W.RB20DE)
