Search › Model › WAR20
WAR20

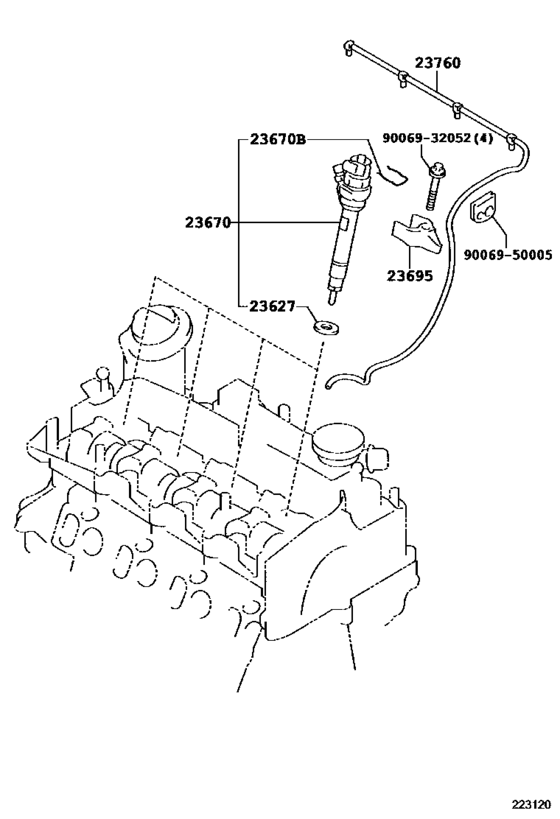

Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) 9
| # | OEM | Part name |
|---|---|---|
| 23627 | 23291-WA010 | Ring, Packing, No.1(For Nozzle) |
| 23670 | 23670-WA010 | Injector Assy |
| 23670 | 23670-WA020 | Injector Assy |
| 23670 | 90069-48019 | Injector Clip |
| 23695 | 23695-WA010 | Clamp, Nozzle Holder, No.1 |
| 23760 | 23761-WA010 | Pipe Assy, Nozzle Leakage |
| 23760 | 23761-WA021 | Pipe Assy, Nozzle Leakage |
| 9006932052 | 90069-32052 | New Genuine Part |
| 9006950005 | 90069-50005 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 23291-WA010 | Ring, Packing, No.1(For Nozzle) | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 23670-WA010 | Injector Assy | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 23670-WA020 | Injector Assy | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 23695-WA010 | Clamp, Nozzle Holder, No.1 | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 23761-WA010 | Pipe Assy, Nozzle Leakage | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 23761-WA021 | Pipe Assy, Nozzle Leakage | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 90069-32052 | New Genuine Part | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 90069-48019 | Injector Clip | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
| 90069-50005 | New Genuine Part | Injection Nozzle ([01.2014 - 03.2015] (1401-1503)1WW) |
