Search › Model › WAR20

WAR20

Toyota VERSO · 2014 · 3,514 parts · 206 categories

← Back to categories

3,514 items

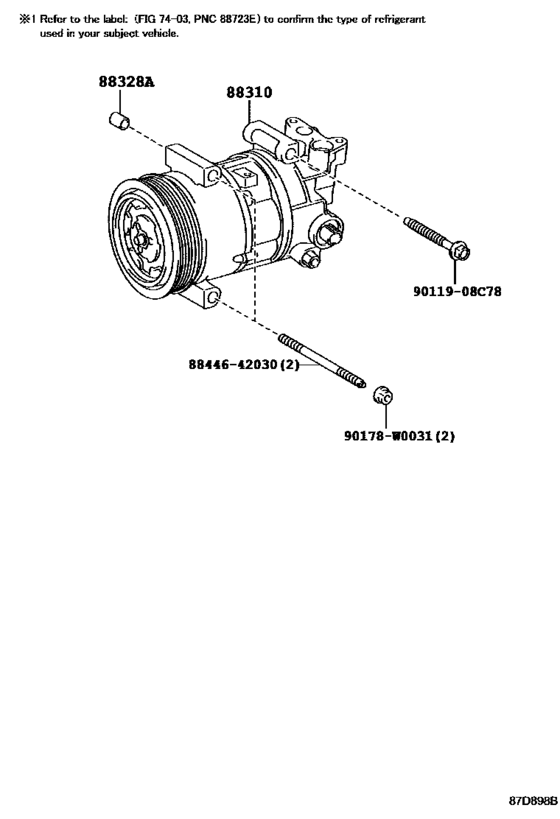

Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20) 7

#	OEM	Part name
88310	88310-0F050	Compressor Assy, W/pulley
88310	88310-0F051	Compressor Assy, W/pulley
88310	88310-0F070	Compressor Assy, W/pulley
88328	88328-YV030	Pin, Compressor
90178	90178-W0031	Nut (For Transmission Control Cable)
9011908	90119-08C78	Bolt, No.2(For Alternator)
8844642030	88446-42030	Bolt, Cooler

OEM	Part name	Category
88310-0F050	Compressor Assy, W/pulley	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
88310-0F051	Compressor Assy, W/pulley	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
88310-0F070	Compressor Assy, W/pulley	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
88328-YV030	Pin, Compressor	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
88446-42030	Bolt, Cooler	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
90119-08C78	Bolt, No.2(For Alternator)	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)
90178-W0031	Nut (For Transmission Control Cable)	Heating & Air Conditioning - Compressor ([01.2014 - ] REFRIGERANT TYPE : R-134A (1401- )WAR20)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 206
Collected: 2026-08-04
