W41

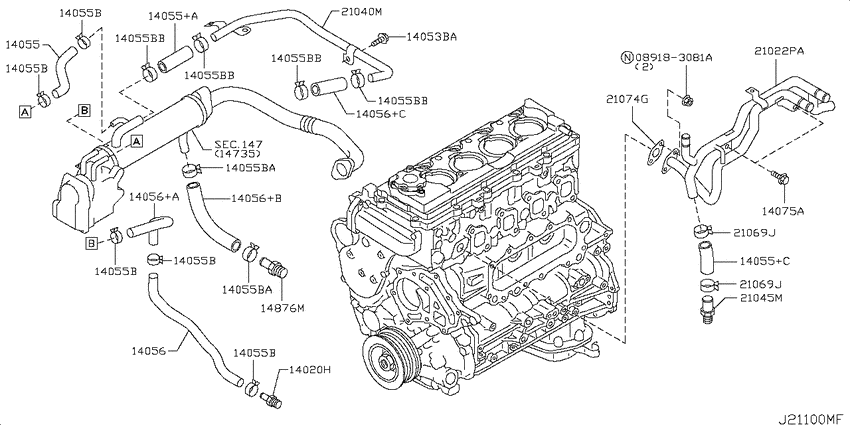

Water hose & piping (2008-06-01 ~ ; ZD30DDTI) 11
| # | OEM | Part name |
|---|---|---|
| 14020 | 14075-VC10A | Connector-Water Hose |
| 14053 | 01125-08164 | BOLT-BALANCE SHAFT |
| 14055 | 14055-MA70A | Hose-Water |
| 14055 | 14055-MA70C | Hose-Water |
| 14056 | 14056-MA70B | Hose-Water |
| 14056 | 14056-MA70C | Hose-Water |
| 14056 | 14056-MA70A | Hose-Water |
| 14056 | 21047-MA70A | Hose-Water |
| 14056 | 14056-MA71A | Hose-Water |
| 14876 | 21016-2W20A | Connector-Water |
| 21022 | 21022-WM40A | Pipe Assy-Heater |
| OEM | Part name | Category |
|---|---|---|
| 01125-08164 | BOLT-BALANCE SHAFT | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14055-MA70A | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14055-MA70C | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14056-MA70A | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14056-MA70B | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14056-MA70C | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14056-MA71A | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 14075-VC10A | Connector-Water Hose | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 21016-2W20A | Connector-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 21022-WM40A | Pipe Assy-Heater | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
| 21047-MA70A | Hose-Water | Water hose & piping (2008-06-01 ~ ; ZD30DDTI) |
