Search › Model › W41
W41

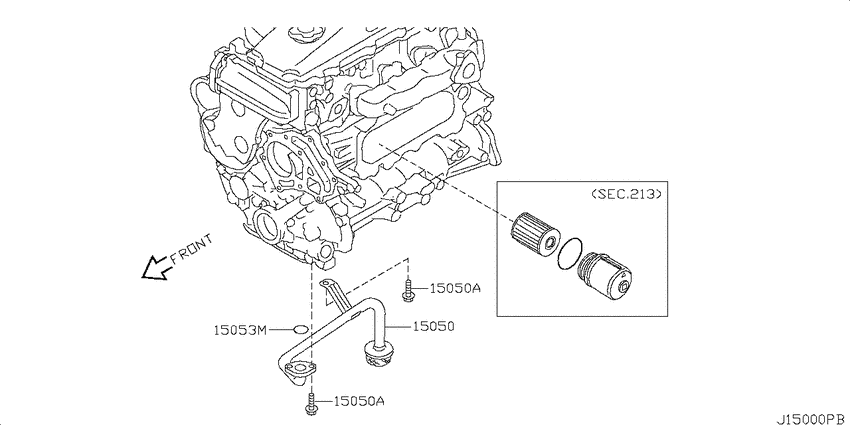

Lubricating system (2008-06-01 ~ ; ZD30DDTI) 3
| # | OEM | Part name |
|---|---|---|
| 15050 | 15050-VC101 | Strainer Assy-Oil |
| 15050 | 01125-08124 | BOLT |
| 15053 | 01001-21024 | SEAL-O RING,OIL STRAINER |
| OEM | Part name | Category |
|---|---|---|
| 01001-21024 | SEAL-O RING,OIL STRAINER | Lubricating system (2008-06-01 ~ ; ZD30DDTI) |
| 01125-08124 | BOLT | Lubricating system (2008-06-01 ~ ; ZD30DDTI) |
| 15050-VC101 | Strainer Assy-Oil | Lubricating system (2008-06-01 ~ ; ZD30DDTI) |
