Search › Model › W41
W41

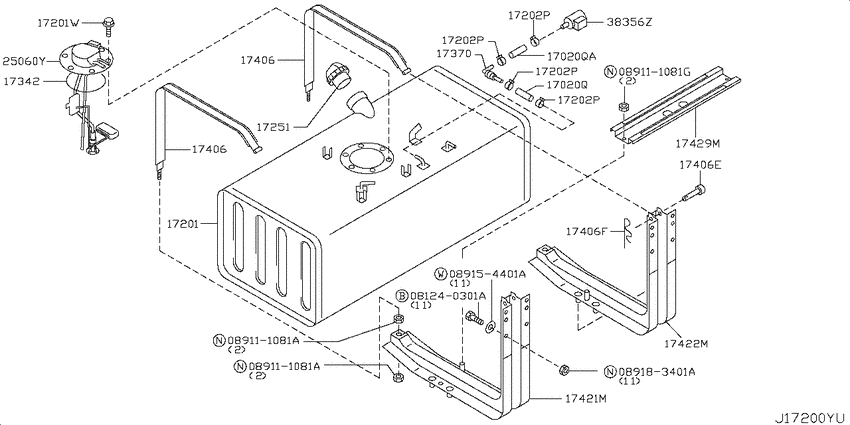

Fuel tank (2008-06-01 ~ ; ZD30DDTI) 14
| # | OEM | Part name |
|---|---|---|
| 17020 | 02187-20822 | ホース,ベンチレーシヨン フユーエル タンク |
| 17020 | 02187-20522 | ホース,ベンチレーシヨン フユーエル タンク |
| 17201 | 17201-WK600 | Tank Assy-Fuel |
| 17201 | 17201-WK610 | Tank Assy-Fuel |
| 17202 | 01558-00401 | CLAMP-HOSE |
| 17370 | 17370-5U300 | Valve Assy-Fuel Check |
| 17406 | 17406-WK800 | Band Assy-Fuel Tank Mounting |
| 17406 | 17414-T8510 | Pin-Set |
| 17406 | 17415-76000 | Clip-Pin |
| 17421 | 17421-WK50A | Bracket Assy-Fuel Tank Supprot |
| 17422 | 17422-WK50A | Bracket Assy-Fuel Tank Support |
| 17429 | 17429-WK100 | Reinforce-Fuel Tank |
| 25060 | 25060-WK60A | Sender Unit-Fuel Gauge |
| 81240301 | 08124-0301A | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01558-00401 | CLAMP-HOSE | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 02187-20522 | ホース,ベンチレーシヨン フユーエル タンク | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 02187-20822 | ホース,ベンチレーシヨン フユーエル タンク | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 08124-0301A | Bolt-hexagon | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17201-WK600 | Tank Assy-Fuel | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17201-WK610 | Tank Assy-Fuel | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17370-5U300 | Valve Assy-Fuel Check | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17406-WK800 | Band Assy-Fuel Tank Mounting | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17414-T8510 | Pin-Set | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17415-76000 | Clip-Pin | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17421-WK50A | Bracket Assy-Fuel Tank Supprot | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17422-WK50A | Bracket Assy-Fuel Tank Support | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 17429-WK100 | Reinforce-Fuel Tank | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
| 25060-WK60A | Sender Unit-Fuel Gauge | Fuel tank (2008-06-01 ~ ; ZD30DDTI) |
