W41

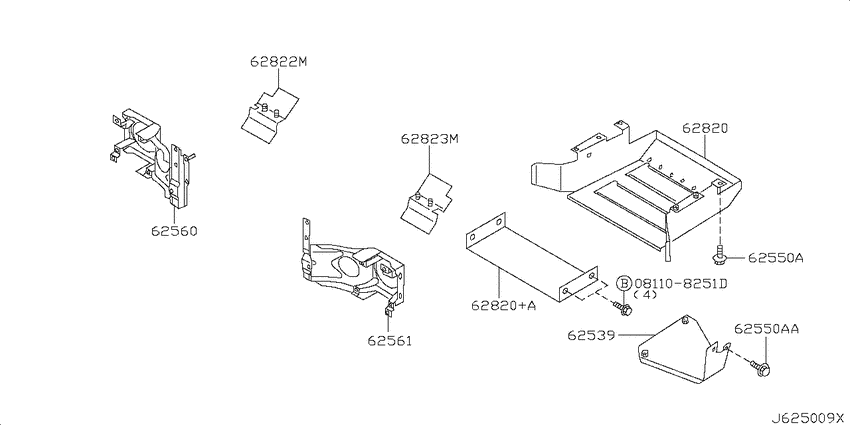

Front apron & radiator core support (2007-08-01 ~ ; B) 6
| # | OEM | Part name |
|---|---|---|
| 62550 | 01125-00423 | BOLT |
| 62560 | 62560-WK000 | Bracket Assy-Head Lamp, Rh |
| 62561 | 62561-WK000 | Bracket Assy-Head Lamp, Lh |
| 62820 | 62684-WK200 | Guide-Air, Front |
| 62822 | 62640-WJ100 | Guide-Air, Front Rh |
| 62823 | 62641-WJ100 | Guide-Air, Front Lh |
| OEM | Part name | Category |
|---|---|---|
| 01125-00423 | BOLT | Front apron & radiator core support (2007-08-01 ~ ; B) |
| 62560-WK000 | Bracket Assy-Head Lamp, Rh | Front apron & radiator core support (2007-08-01 ~ ; B) |
| 62561-WK000 | Bracket Assy-Head Lamp, Lh | Front apron & radiator core support (2007-08-01 ~ ; B) |
| 62640-WJ100 | Guide-Air, Front Rh | Front apron & radiator core support (2007-08-01 ~ ; B) |
| 62641-WJ100 | Guide-Air, Front Lh | Front apron & radiator core support (2007-08-01 ~ ; B) |
| 62684-WK200 | Guide-Air, Front | Front apron & radiator core support (2007-08-01 ~ ; B) |
