W41

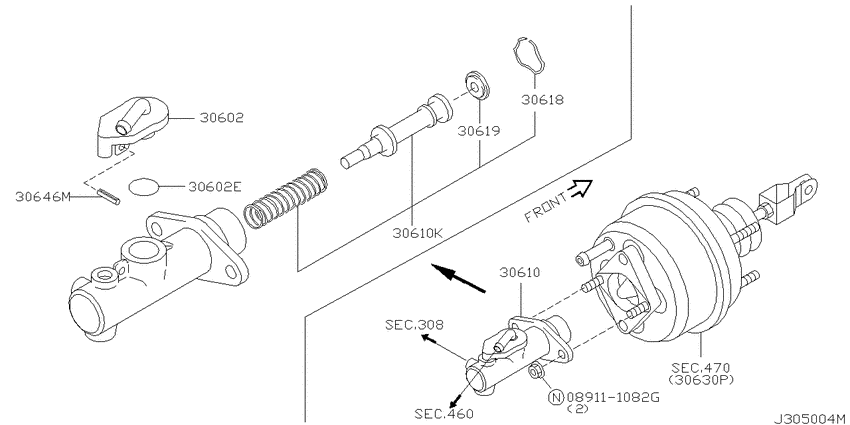

Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) 5
| # | OEM | Part name |
|---|---|---|
| 30602 | 46020-WJ100 | Cap Assy-Reservoir |
| 30610 | 30610-WJ10A | Cylinder Assy-Clutch Master |
| 30610 | 30611-VB029 | Piston Kit-Clutch Master Cylinder |
| 30619 | 30638-T800A | Stopper |
| 30646 | 30655-21U00 | Cap |
| OEM | Part name | Category |
|---|---|---|
| 30610-WJ10A | Cylinder Assy-Clutch Master | Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) |
| 30611-VB029 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) |
| 30638-T800A | Stopper | Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) |
| 30655-21U00 | Cap | Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) |
| 46020-WJ100 | Cap Assy-Reservoir | Clutch master cylinder (2007-08-01 ~ ; TB45E +ZD30DDTI) |
