Search › Model › W41

W41

Nissan CIVILIAN · 1999 · 3,073 parts · 260 categories

3,073 items

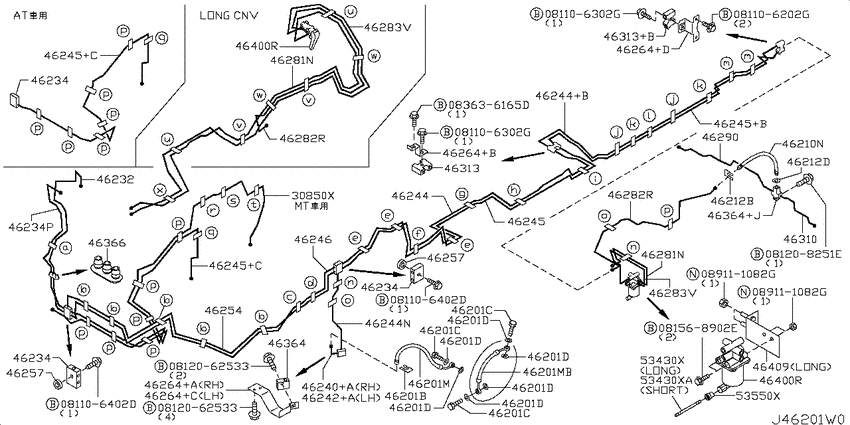

Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI) 43

#	OEM	Part name
30850	30850-WM51A	Tube Assy-Clutch
46201	46210-WK50A	Hose Assy-Brake, Front
46201	46211-WK50A	Hose Assy-Brake, Front
46201	46210-WK56A	Hose Assy-Brake, Front
46210	46214-0M65D	Hose Assy-Brake
46210	46214-WK85D	Hose Assy-Brake
46232	46250-WK510	Tube Assy-Brake, Front M/c To Connector
46232	46250-WM01A	Tube Assy-Brake, Front M/c To Connector
46234	46252-WK500	Tube Assy-Brake, Rear M/c To Connector
46240	46240-41T01	Tube Assy-Brake, Fr Rh
46244	46244-WM40C	Tube Assy-Brake, Front
46244	46244-WM50A	Tube Assy-Brake, Front
46244	46244-WM40B	Tube Assy-Brake, Front
46244	46244-WM01A	Tube Assy-Brake, Front
46245	46245-WM40C	Tube Assy-Front Brake, Rh
46245	46245-WM50A	Tube Assy-Front Brake, Rh
46245	46245-WM40B	Tube Assy-Front Brake, Rh
46245	46245-WM51A	Tube Assy-Front Brake, Rh
46246	46246-WM40A	Tube Assy-Front Brake, Lh
46254	46254-WM40A	Tube Assy-Brake, Front
46257	46257-21003	Spacer-Brake Tube Connector
46257	46257-EB70A	Spacer-Brake Tube Connector
46264	46264-41T00	Bracket-Brake Connector
46264	46264-WK515	Bracket-Brake Connector
46264	46264-41T01	Bracket-Brake Connector
46264	46264-WJ101	Bracket-Brake Connector
46281	46281-WK520	Tube Assy-Brake, Connector To Lsv
46282	46282-WK520	Tube Assy-Brake, Lsv To Rear
46283	46283-WK520	Tube Assy-Brake, Connector To Rear
46290	46290-42T00	Tube Assy-Rear Brake, Rh
46290	46290-WJ110	Tube Assy-Rear Brake, Rh
46310	46310-42T00	Tube Assy-Rear Brake, Lh
46310	46310-WJ110	Tube Assy-Rear Brake, Lh
46364	46364-T8000	Connector-Brake Tube
46366	46366-41T00	Grommet
46400	46400-WJ111	Valve Assy-Load Sensing
81106202	08110-6202G	Bolt-hexagon
81106302	08110-6302G	Bolt-hexagon
81106402	08110-6402D	Bolt-hexagon
81208251	08120-8251E	Bolt-hexagon
81568902	08156-8902E	ボルト
83636165	08363-6165D	Rope & Hook
812062533	08120-62533	Bolt-hexagon

OEM	Part name	Category
08110-6202G	Bolt-hexagon	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08110-6302G	Bolt-hexagon	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08110-6402D	Bolt-hexagon	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08120-62533	Bolt-hexagon	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08120-8251E	Bolt-hexagon	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08156-8902E	ボルト	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
08363-6165D	Rope & Hook	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
30850-WM51A	Tube Assy-Clutch	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46210-WK50A	Hose Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46210-WK56A	Hose Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46211-WK50A	Hose Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46214-0M65D	Hose Assy-Brake	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46214-WK85D	Hose Assy-Brake	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46240-41T01	Tube Assy-Brake, Fr Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46244-WM01A	Tube Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46244-WM40B	Tube Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46244-WM40C	Tube Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46244-WM50A	Tube Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46245-WM40B	Tube Assy-Front Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46245-WM40C	Tube Assy-Front Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46245-WM50A	Tube Assy-Front Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46245-WM51A	Tube Assy-Front Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46246-WM40A	Tube Assy-Front Brake, Lh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46250-WK510	Tube Assy-Brake, Front M/c To Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46250-WM01A	Tube Assy-Brake, Front M/c To Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46252-WK500	Tube Assy-Brake, Rear M/c To Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46254-WM40A	Tube Assy-Brake, Front	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46257-21003	Spacer-Brake Tube Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46257-EB70A	Spacer-Brake Tube Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46264-41T00	Bracket-Brake Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46264-41T01	Bracket-Brake Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46264-WJ101	Bracket-Brake Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46264-WK515	Bracket-Brake Connector	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46281-WK520	Tube Assy-Brake, Connector To Lsv	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46282-WK520	Tube Assy-Brake, Lsv To Rear	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46283-WK520	Tube Assy-Brake, Connector To Rear	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46290-42T00	Tube Assy-Rear Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46290-WJ110	Tube Assy-Rear Brake, Rh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46310-42T00	Tube Assy-Rear Brake, Lh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46310-WJ110	Tube Assy-Rear Brake, Lh	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46364-T8000	Connector-Brake Tube	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46366-41T00	Grommet	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
46400-WJ111	Valve Assy-Load Sensing	Brake piping & control (2008-06-01 ~ ; パイピング(A/LSV付き); B.ZD30DDTI)
