W41

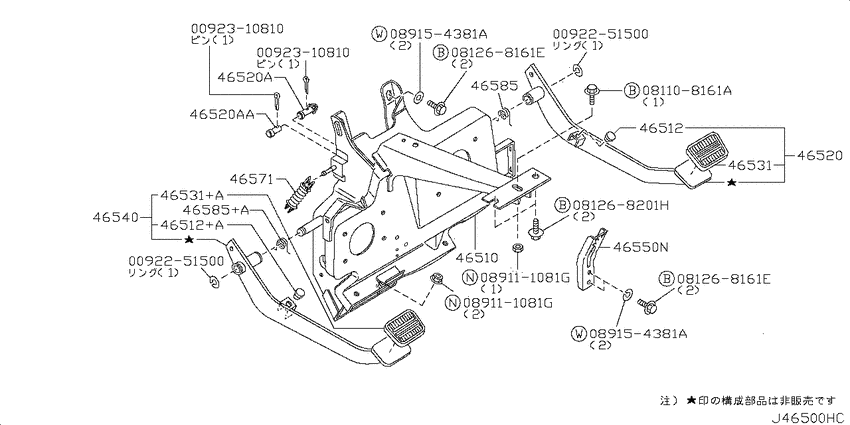

Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) 8
| # | OEM | Part name |
|---|---|---|
| 46510 | 46510-WJ110 | Bracket Assy-Pedal |
| 46540 | 46540-WJ110 | Pedal Assy-Clutch |
| 46550 | 46550-S9000 | Bracket-Pedal Stopper |
| 46571 | 46571-58N00 | Spring-Assist |
| 46585 | 46585-S9000 | Spring-Return |
| 81268161 | 08126-8161E | Bolt-hexagon |
| 92251500 | 00922-51500 | リング,スナツプ |
| 92310810 | 00923-10810 | PIN-SNAP |
| OEM | Part name | Category |
|---|---|---|
| 00922-51500 | リング,スナツプ | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 00923-10810 | PIN-SNAP | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 08126-8161E | Bolt-hexagon | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 46510-WJ110 | Bracket Assy-Pedal | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 46540-WJ110 | Pedal Assy-Clutch | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 46550-S9000 | Bracket-Pedal Stopper | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 46571-58N00 | Spring-Assist | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
| 46585-S9000 | Spring-Return | Brake & clutch pedal (2008-06-01 ~ ; ZD30DDTI.MT/5F) |
