| 01311-00244 |
WASHER-PLAIN |

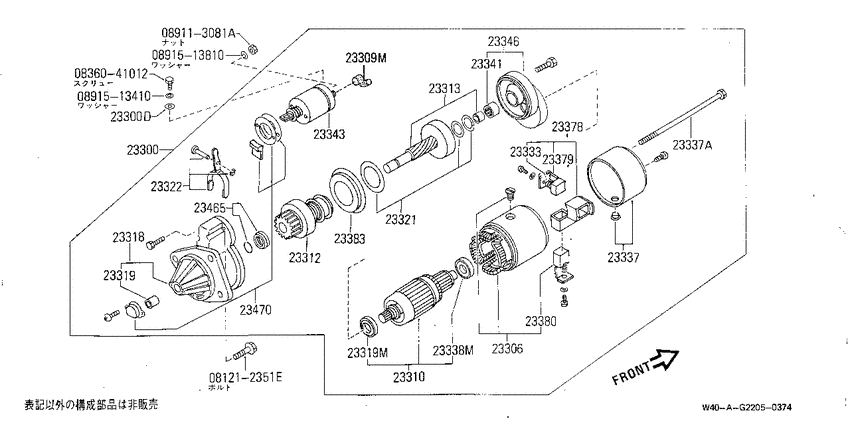

Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 08121-2351E |
Bolt-hexagon |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 08360-41012 |
スクリユ-,マシン |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 08911-3081A |
Nut-Wiper Arm |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 08915-13810 |
ワツシヤ-,スプリング |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23300-34T00 |
Motor Assy-Starter |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23306-Z9002 |
Coil Assy-Field |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23310-99205 |
Armature Assy |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23312-Z9000 |
Shaft Assy-Starter Motor |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23314-Z9002 |
Pinion Assy |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23318-06J02 |
Case Assy-Gear |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23319-Z9000 |
Metal-Gear Case |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23322-06J01 |
Lever Set-Shift |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23330-C8600 |
Holder Assy-Brush |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23331-Z9002 |
Brush-Minus |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23333-Z9001 |
Spring-Brush |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23337-06J01 |
Cover Assy-Rear |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23340-J5500 |
Bolt-Through |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23341-V0600 |
Bearing |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23343-34T00 |
Switch Assy-Magnetic |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23358-V0600 |
Plate-Center |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23369-Z9001 |
Stopper Set-Pinion |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23372-V0600 |
Washer Set-Thrust |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23383-34T00 |
Housing-Center |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23383-Z9002 |
Bearing-Rear Cover |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23383-Z9003 |
Bearing |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 23470-34T00 |
Cover Set-Dust |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
| 24360-06J00 |
Cap |
Starter motor (1995-08-01 ~ ; 日立; TD42T) |
