Search › Model › W40
W40

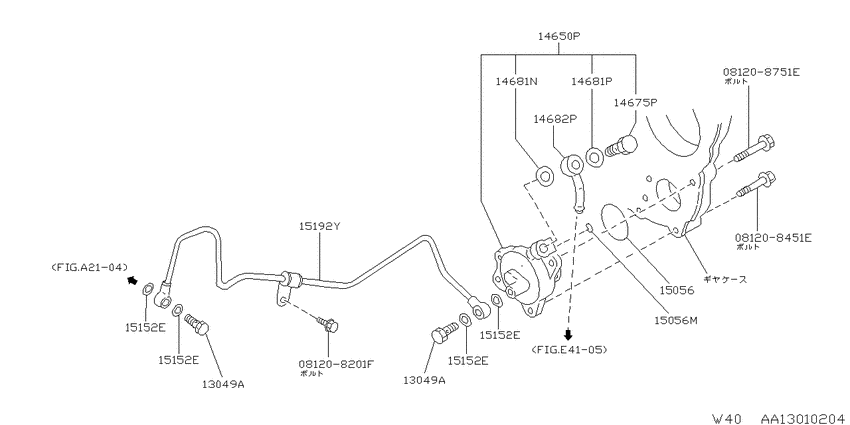

front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) 7
| # | OEM | Part name |
|---|---|---|
| 14650 | 14650-7T401 | Pump Assy-Vacuum |
| 14675 | 14675-R8800 | Bolt Assy-Connector |
| 14682 | 14682-31W00 | Connector |
| 14682 | 14682-06J03 | Connector |
| 15192 | 14665-0Y702 | Tube Assy-Oil |
| 81208451 | 08120-8451E | Bolt-hexagon |
| 81208751 | 08120-8751E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8451E | Bolt-hexagon | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 08120-8751E | Bolt-hexagon | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 14650-7T401 | Pump Assy-Vacuum | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 14665-0Y702 | Tube Assy-Oil | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 14675-R8800 | Bolt Assy-Connector | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 14682-06J03 | Connector | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
| 14682-31W00 | Connector | front cover (1995-08-01 ~ ; バキューム ポンプ; TD42 +TD42T) |
