Search › Model › W40
W40

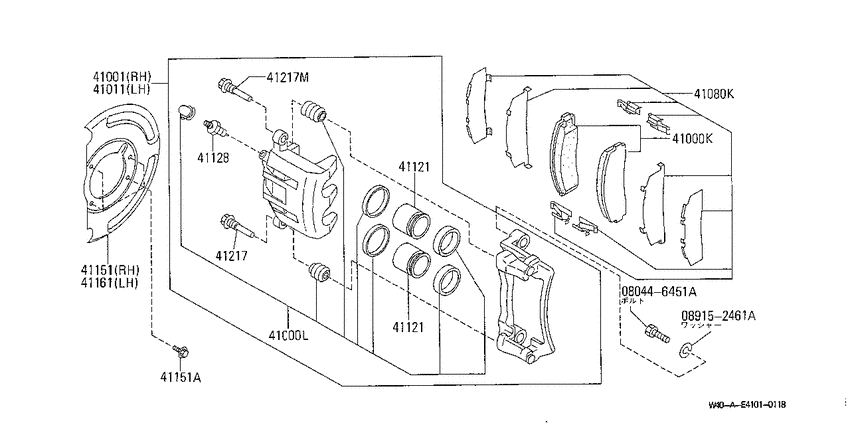

Front brake (1993-04-01 ~ ; ALL) 12
| # | OEM | Part name |
|---|---|---|
| 41000 | 41060-0T385 | Pad Kit-Disc Brake |
| 41001 | 41001-0T600 | Caliper Assy-Front Rh, W/o Pads Or Shims |
| 41011 | 41011-0T600 | Caliper Assy-Front Lh, W/o Pads Or Shims |
| 41080 | 41080-03T25 | Hardware Kit-Front Disc Brake Pad |
| 41080 | 41080-0T326 | Hardware Kit-Front Disc Brake Pad |
| 41128 | 41128-U3400 | Screw-Bleeder |
| 41151 | 41151-0T300 | Plate-Baffle |
| 41151 | 43244-A0800 | Screw |
| 41161 | 41161-0T300 | Plate-Baffle |
| 41217 | 41134-0T300 | Pin |
| 80446451 | 08044-6451A | Bolt-hexagon |
| 89152461 | 08915-2461A | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 08044-6451A | Bolt-hexagon | Front brake (1993-04-01 ~ ; ALL) |
| 08915-2461A | ワツシヤ-,スプリング | Front brake (1993-04-01 ~ ; ALL) |
| 41001-0T600 | Caliper Assy-Front Rh, W/o Pads Or Shims | Front brake (1993-04-01 ~ ; ALL) |
| 41011-0T600 | Caliper Assy-Front Lh, W/o Pads Or Shims | Front brake (1993-04-01 ~ ; ALL) |
| 41060-0T385 | Pad Kit-Disc Brake | Front brake (1993-04-01 ~ ; ALL) |
| 41080-03T25 | Hardware Kit-Front Disc Brake Pad | Front brake (1993-04-01 ~ ; ALL) |
| 41080-0T326 | Hardware Kit-Front Disc Brake Pad | Front brake (1993-04-01 ~ ; ALL) |
| 41128-U3400 | Screw-Bleeder | Front brake (1993-04-01 ~ ; ALL) |
| 41134-0T300 | Pin | Front brake (1993-04-01 ~ ; ALL) |
| 41151-0T300 | Plate-Baffle | Front brake (1993-04-01 ~ ; ALL) |
| 41161-0T300 | Plate-Baffle | Front brake (1993-04-01 ~ ; ALL) |
| 43244-A0800 | Screw | Front brake (1993-04-01 ~ ; ALL) |
