Search › Model › W40
W40

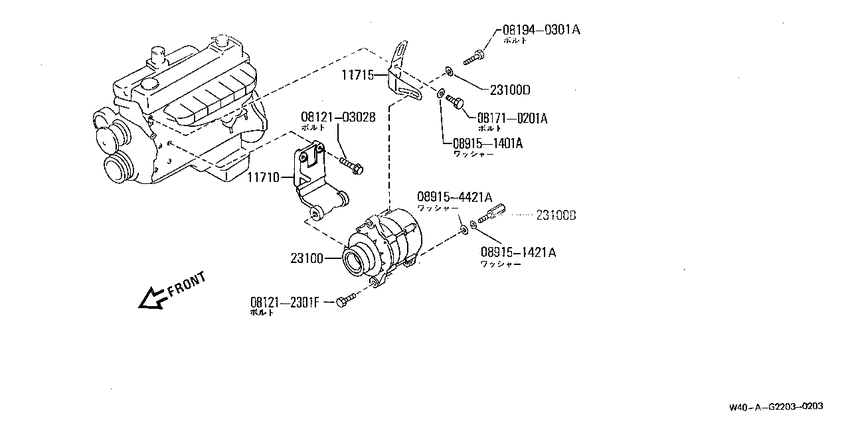

Alternator mounting (1995-08-01 ~ ; (; TD42T) 6
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-34T01 | Bracket-Alternator |
| 11715 | 11715-34T01 | Bar-Adjusting, Alternator |
| 23100 | 23100-62T01 | Alternator Assy |
| 81212301 | 08121-2301F | Bolt-hexagon |
| 81710201 | 08171-0201A | Bolt-hexagon |
| 812103028 | 08121-03028 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08121-03028 | Bolt-hexagon | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
| 08121-2301F | Bolt-hexagon | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
| 08171-0201A | Bolt-hexagon | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
| 11710-34T01 | Bracket-Alternator | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
| 11715-34T01 | Bar-Adjusting, Alternator | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
| 23100-62T01 | Alternator Assy | Alternator mounting (1995-08-01 ~ ; (; TD42T) |
