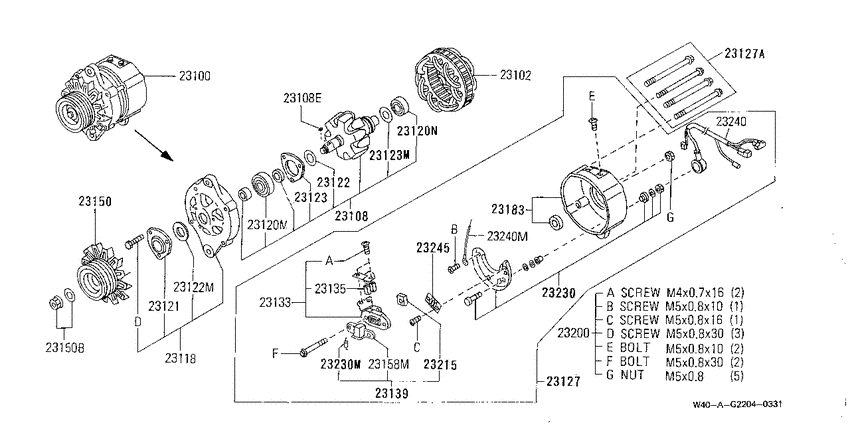

| 23100-62T01 |
Alternator Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23102-S9000 |
Stator Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23108-T9003 |
Rotor Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23116-99004 |
Packing |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23116-T9001 |
Cover-Bearing |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23116-T9002 |
Packing |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23117-99006 |
Retainer-Bearing |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23118-T9000 |
Cover Assy-Front |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23120-T9000 |
Bearing-Ball |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23124-T9000 |
Retainer-Packing |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23127-34T03 |
Cover Assy-Rear |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23129-T9001 |
Bearing-Ball |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23131-T9000 |
Bolt-Through |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23134-T9000 |
Brush Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23135-T9000 |
Holder Assy-Brush |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23136-62T01 |
Wire Assy-Lead |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23136-62T02 |
Wire Assy-Lead |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23137-34T01 |
Terminal |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23150-34T01 |
Pulley Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23153-T9000 |
Nut Assy-Pulley |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23183-62T01 |
Cover-Rear |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23195-90001 |
Key |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23215-C6800 |
Regulator Assy-Ic |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23230-T9000 |
Diode Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23231-T9000 |
Diode-Sub |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
| 23528-34T01 |
Terminal Assy |
Alternator (1995-08-01 ~ ; 日立; TD42.GL/T1 +TD42T) |
