Nissan CIVILIAN · 1982 · 5,497 parts · 242 categories

5,497 items

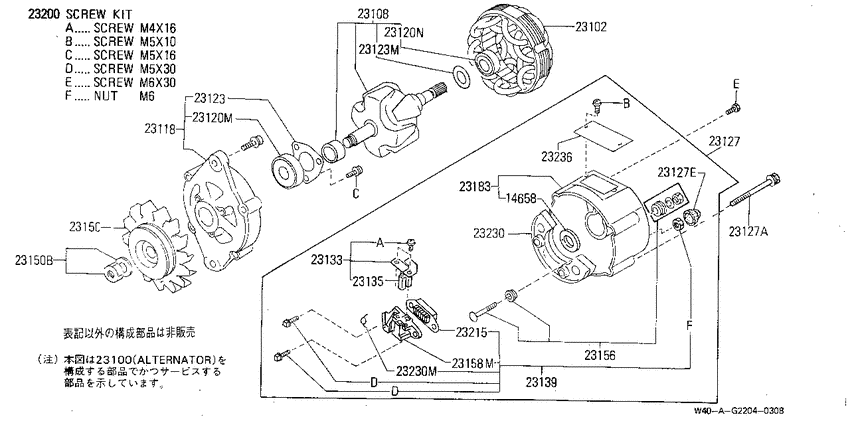

Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX)) 21

#	OEM	Part name
23100	23100-62T01	Alternator Assy
23102	23102-S9000	Stator Assy
23108	23108-T9003	Rotor Assy
23108	23195-90001	Key
23118	23118-T9000	Cover Assy-Front
23120	23120-T9000	Bearing-Ball
23120	23129-T9001	Bearing-Ball
23123	23117-99006	Retainer-Bearing
23123	23116-T9001	Cover-Bearing
23127	23127-34T03	Cover Assy-Rear
23127	23131-T9000	Bolt-Through
23133	23135-T9000	Holder Assy-Brush
23135	23134-T9000	Brush Assy
23139	23528-34T01	Terminal Assy
23150	23150-34T01	Pulley Assy
23150	23153-T9000	Nut Assy-Pulley
23156	23156-34T01	Terminal Assy-B
23158	23137-34T01	Terminal
23183	23183-62T01	Cover-Rear
23215	23215-C6800	Regulator Assy-Ic
23230	23230-T9000	Diode Assy

OEM	Part name	Category
23100-62T01	Alternator Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23102-S9000	Stator Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23108-T9003	Rotor Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23116-T9001	Cover-Bearing	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23117-99006	Retainer-Bearing	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23118-T9000	Cover Assy-Front	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23120-T9000	Bearing-Ball	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23127-34T03	Cover Assy-Rear	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23129-T9001	Bearing-Ball	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23131-T9000	Bolt-Through	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23134-T9000	Brush Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23135-T9000	Holder Assy-Brush	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23137-34T01	Terminal	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23150-34T01	Pulley Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23153-T9000	Nut Assy-Pulley	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23156-34T01	Terminal Assy-B	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23183-62T01	Cover-Rear	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23195-90001	Key	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23215-C6800	Regulator Assy-Ic	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23230-T9000	Diode Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
23528-34T01	Terminal Assy	Alternator (1990-06-01 ~ 1993-04-01; 日立35A; *ED35.(CT+CH+CH/CC+DX))
