Search › Model › W30

W30

Nissan LARGO · 1993 · 4,361 parts · 607 categories

4,361 items

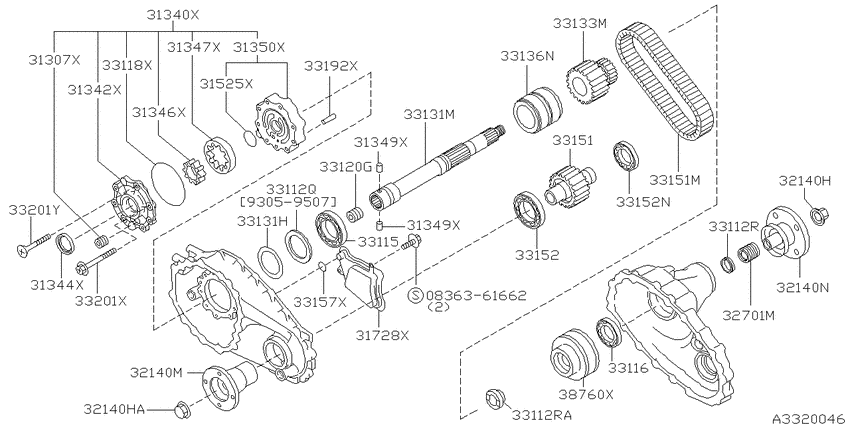

Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI) 34

#	OEM	Part name
31307	31307-27C00	Plug-Taper
31340	31340-1C101	Pump Assy-Oil, Transfer
31342	31342-05U02	Housing-Oil Pump
31344	33111-20N00	Seal-Oil, Transfer Cover
31346	31346-1P400	Gear-Inner, Oil Pump
31347	31347-1P400	Gear-Outer, Oil Pump
31349	31349-05U00	Pin-Pivot
31350	31350-27C01	Cover Assy-Oil Pump
31525	31525-05U00	Ring-Seal
31728	31728-27C00	Strainer Assy-Oil
32140	38216-31G00	Nut
32140	33210-33G00	Flange Assy-Companion
32140	33210-33G0A	Flange Assy-Companion
32140	33220-27C00	Flange Assy-Companion
32701	32701-27C00	Gear-Drive, Speedometer
33112	33148-27C00	Spacer-Main Shaft
33112	33148-5C500	Spacer-Main Shaft
33116	33139-27C00	Bearing-Main, Transfer Rear
33118	33118-05U00	Seal-O Ring
33120	31307-1C100	Plug
33131	33138-73P21	Ring-Snap, Main Shaft
33131	33138-73P22	Ring-Snap, Main Shaft
33131	33131-5C501	Shaft-Main, Transfer
33133	33133-5C510	Sprocket-Front Drive
33136	33136-1C100	Bearing-Needle
33151	33151-5C510	Shaft-Drive, Front
33151	33152-5C510	Chain-Front Drive, Transfer
33152	32133-J2000	Bearing-Drive Shaft
33157	33157-05U00	Seal-O Ring, Oil Strainer
33192	33192-05U00	Pin-Dowel
33201	33201-1P400	Bolt-Fix, Oil Pump
33201	33201-1P410	Bolt-Fix, Oil Pump
38760	38760-5C502	Coupling Assy-Viscous, Transfer
836361662	08363-61662	スクリユ-,マシン

OEM	Part name	Category
08363-61662	スクリユ-,マシン	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31307-1C100	Plug	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31307-27C00	Plug-Taper	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31340-1C101	Pump Assy-Oil, Transfer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31342-05U02	Housing-Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31346-1P400	Gear-Inner, Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31347-1P400	Gear-Outer, Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31349-05U00	Pin-Pivot	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31350-27C01	Cover Assy-Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31525-05U00	Ring-Seal	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
31728-27C00	Strainer Assy-Oil	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
32133-J2000	Bearing-Drive Shaft	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
32701-27C00	Gear-Drive, Speedometer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33111-20N00	Seal-Oil, Transfer Cover	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33118-05U00	Seal-O Ring	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33131-5C501	Shaft-Main, Transfer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33133-5C510	Sprocket-Front Drive	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33136-1C100	Bearing-Needle	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33138-73P21	Ring-Snap, Main Shaft	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33138-73P22	Ring-Snap, Main Shaft	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33139-27C00	Bearing-Main, Transfer Rear	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33148-27C00	Spacer-Main Shaft	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33148-5C500	Spacer-Main Shaft	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33151-5C510	Shaft-Drive, Front	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33152-5C510	Chain-Front Drive, Transfer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33157-05U00	Seal-O Ring, Oil Strainer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33192-05U00	Pin-Dowel	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33201-1P400	Bolt-Fix, Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33201-1P410	Bolt-Fix, Oil Pump	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33210-33G00	Flange Assy-Companion	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33210-33G0A	Flange Assy-Companion	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
33220-27C00	Flange Assy-Companion	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
38216-31G00	Nut	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)
38760-5C502	Coupling Assy-Viscous, Transfer	Transfer gear (1996-10-01 ~ 1997-10-01; .(4WD.7P+4WD.8P).KA24DE +(4WD.7P+4WD.8P).CD20TI)

Source: Public OEM parts-catalog data
Variants: 2 / 54
Category: 607
Collected: 2026-07-27
