Search › Model › W30

W30

Nissan LARGO · 1993 · 4,361 parts · 607 categories

4,361 items

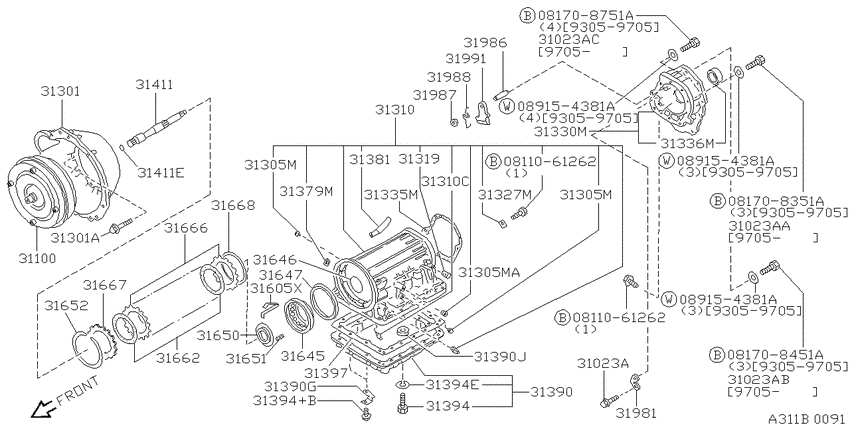

Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT) 60

#	OEM	Part name
31023	31377-41X00	Bolt
31023	31377-41X20	Bolt
31023	31377-41X21	Bolt
31023	31377-41X24	Bolt
31100	31100-43X14	Converter Assy-Torque
31100	31100-43X62	Converter Assy-Torque
31100	31100-43X15	Converter Assy-Torque
31100	31100-43X18	Converter Assy-Torque
31301	31301-41X63	Housing-Converter
31301	31309-X6600	Bolt
31301	31301-41X19	Housing-Converter
31305	31305-41X00	Plug-Thread
31305	31305-41X01	Plug-Thread
31310	31310-41X23	Case Assy-Automatic Transmission
31310	31308-41X00	Pin-Dowel
31319	31345-X6101	Plug
31327	31327-41X00	Plate-Baffle
31330	31330-41X13	Case Assy-Adapter
31335	31338-41X01	Gasket-Extension
31335	31338-41X0A	Gasket-Extension
31381	31381-41X03	Breather-Air
31390	31390-41X01	Pan Assy-Oil
31390	21644-41X00	Bracket-Oil Cooler Tube
31390	31392-X5100	Magnet
31397	31397-41X94	Gasket & Seal Kit-Auto Transmission
31411	31411-41X01	Shaft-Input
31411	31159-X6101	Seal-O Ring
31411	31411-41X00	Shaft-Input
31605	31605-41X20	Spring
31645	31645-41X09	Piston Assy-Low & Reverse Brake
31646	31527-41X05	Seal-Lathe Cut Ring
31647	31528-41X00	Seal-Lip
31650	31655-41X00	Retainer-Low & Reverse Brake
31650	31656-41X01	Retainer-Low & Reverse Brake
31651	31505-41X05	Spring-Piston Return
31652	31506-41X09	Ring-Snap
31662	31532-41X69	Plate Assy-Drive
31666	31666-41X02	Plate-Driven
31667	31667-41X00	Plate-Retaining
31667	31667-41X01	Plate-Retaining
31667	31667-41X02	Plate-Retaining
31667	31667-41X03	Plate-Retaining
31667	31667-41X04	Plate-Retaining
31667	31667-41X05	Plate-Retaining
31667	31667-41X06	Plate-Retaining
31667	31667-41X07	Plate-Retaining
31667	31667-41X08	Plate-Retaining
31667	31667-41X12	Plate-Retaining
31667	31667-41X13	Plate-Retaining
31667	31667-41X14	Plate-Retaining
31668	31535-41X08	Plate-Dished
31981	31981-41X02	Support-Parking Actuator
31986	31986-41X00	Shaft-Parking Pawl
31987	31437-41X00	Spacer-Parking Pawl
31988	31988-41X00	Spring-Return Pawl
31991	31991-41X01	Pawl-Parking
81708351	08170-8351A	Bolt-hexagon
81708451	08170-8451A	Bolt-hexagon
81708751	08170-8751A	Bolt-hexagon
811061262	08110-61262	Bolt-hexagon

OEM	Part name	Category
08110-61262	Bolt-hexagon	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
08170-8351A	Bolt-hexagon	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
08170-8451A	Bolt-hexagon	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
08170-8751A	Bolt-hexagon	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
21644-41X00	Bracket-Oil Cooler Tube	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31100-43X14	Converter Assy-Torque	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31100-43X15	Converter Assy-Torque	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31100-43X18	Converter Assy-Torque	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31100-43X62	Converter Assy-Torque	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31159-X6101	Seal-O Ring	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31301-41X19	Housing-Converter	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31301-41X63	Housing-Converter	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31305-41X00	Plug-Thread	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31305-41X01	Plug-Thread	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31308-41X00	Pin-Dowel	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31309-X6600	Bolt	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31310-41X23	Case Assy-Automatic Transmission	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31327-41X00	Plate-Baffle	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31330-41X13	Case Assy-Adapter	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31338-41X01	Gasket-Extension	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31338-41X0A	Gasket-Extension	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31345-X6101	Plug	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31377-41X00	Bolt	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31377-41X20	Bolt	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31377-41X21	Bolt	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31377-41X24	Bolt	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31381-41X03	Breather-Air	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31390-41X01	Pan Assy-Oil	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31392-X5100	Magnet	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31397-41X94	Gasket & Seal Kit-Auto Transmission	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31411-41X00	Shaft-Input	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31411-41X01	Shaft-Input	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31437-41X00	Spacer-Parking Pawl	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31505-41X05	Spring-Piston Return	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31506-41X09	Ring-Snap	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31527-41X05	Seal-Lathe Cut Ring	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31528-41X00	Seal-Lip	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31532-41X69	Plate Assy-Drive	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31535-41X08	Plate-Dished	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31605-41X20	Spring	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31645-41X09	Piston Assy-Low & Reverse Brake	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31655-41X00	Retainer-Low & Reverse Brake	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31656-41X01	Retainer-Low & Reverse Brake	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31666-41X02	Plate-Driven	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X00	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X01	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X02	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X03	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X04	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X05	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X06	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X07	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X08	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X12	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X13	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31667-41X14	Plate-Retaining	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31981-41X02	Support-Parking Actuator	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31986-41X00	Shaft-Parking Pawl	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31988-41X00	Spring-Return Pawl	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
31991-41X01	Pawl-Parking	Torque converter,housing & case (1997-10-01 ~ ; (4WD.7P+4WD.8P).AT)
