W30

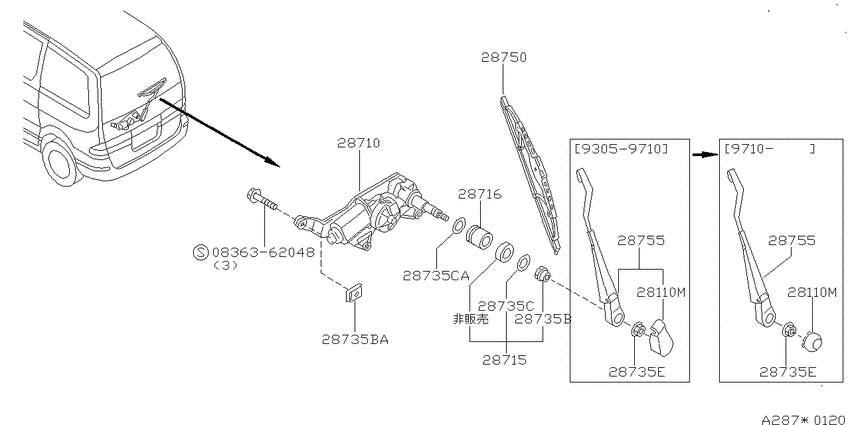

Rear window wiper (1997-10-01 ~ ; W) 13
| # | OEM | Part name |
|---|---|---|
| 28110 | 28782-0C000 | Cover-Rear Wiper Arm |
| 28710 | 28710-5C001 | Motor Assy-Rear Window Wiper |
| 28715 | 28715-5C000 | Washer & Seal Kit-Pivot, B |
| 28715 | 28715-5C001 | Washer & Seal Kit-Pivot, B |
| 28716 | 28713-5C000 | Seal-Pivot |
| 28735 | 28718-15F00 | Nut |
| 28735 | 28717-0C002 | Washer |
| 28735 | 28717-55A00 | Washer |
| 28735 | 28712-0C000 | Washer |
| 28735 | 28889-01G00 | Nut |
| 28755 | 28780-5C005 | Arm Assy-Rear Window Wiper |
| 28755 | 28780-6C900 | Arm Assy-Rear Window Wiper |
| 836362048 | 08363-62048 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08363-62048 | スクリユ-,マシン | Rear window wiper (1997-10-01 ~ ; W) |
| 28710-5C001 | Motor Assy-Rear Window Wiper | Rear window wiper (1997-10-01 ~ ; W) |
| 28712-0C000 | Washer | Rear window wiper (1997-10-01 ~ ; W) |
| 28713-5C000 | Seal-Pivot | Rear window wiper (1997-10-01 ~ ; W) |
| 28715-5C000 | Washer & Seal Kit-Pivot, B | Rear window wiper (1997-10-01 ~ ; W) |
| 28715-5C001 | Washer & Seal Kit-Pivot, B | Rear window wiper (1997-10-01 ~ ; W) |
| 28717-0C002 | Washer | Rear window wiper (1997-10-01 ~ ; W) |
| 28717-55A00 | Washer | Rear window wiper (1997-10-01 ~ ; W) |
| 28718-15F00 | Nut | Rear window wiper (1997-10-01 ~ ; W) |
| 28780-5C005 | Arm Assy-Rear Window Wiper | Rear window wiper (1997-10-01 ~ ; W) |
| 28780-6C900 | Arm Assy-Rear Window Wiper | Rear window wiper (1997-10-01 ~ ; W) |
| 28782-0C000 | Cover-Rear Wiper Arm | Rear window wiper (1997-10-01 ~ ; W) |
| 28889-01G00 | Nut | Rear window wiper (1997-10-01 ~ ; W) |
