W30

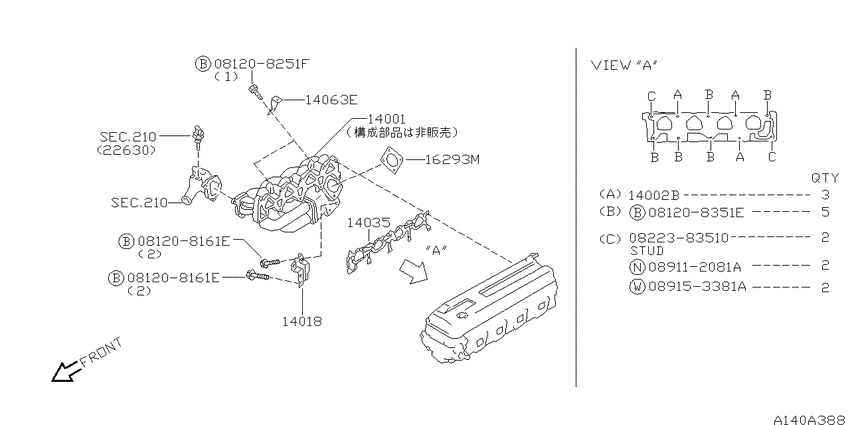

Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) 5
| # | OEM | Part name |
|---|---|---|
| 14001 | 14001-5C000 | Manifold Assy-Intake |
| 14002 | 01121-00356 | BOLT |
| 14018 | 14018-5C000 | Support-Manifold |
| 14063 | 24136-5C000 | Bracket-Egi Harness |
| 16293 | 16175-79S70 | Gasket-Throttle Chamber |
| OEM | Part name | Category |
|---|---|---|
| 01121-00356 | BOLT | Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) |
| 14001-5C000 | Manifold Assy-Intake | Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) |
| 14018-5C000 | Support-Manifold | Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) |
| 16175-79S70 | Gasket-Throttle Chamber | Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) |
| 24136-5C000 | Bracket-Egi Harness | Manifold (1996-10-01 ~ 1997-10-01; インテーク パーツ; KA24DE) |
