W30

Nissan LARGO · 1993 · 4,361 parts · 607 categories

← Back to categories

4,361 items

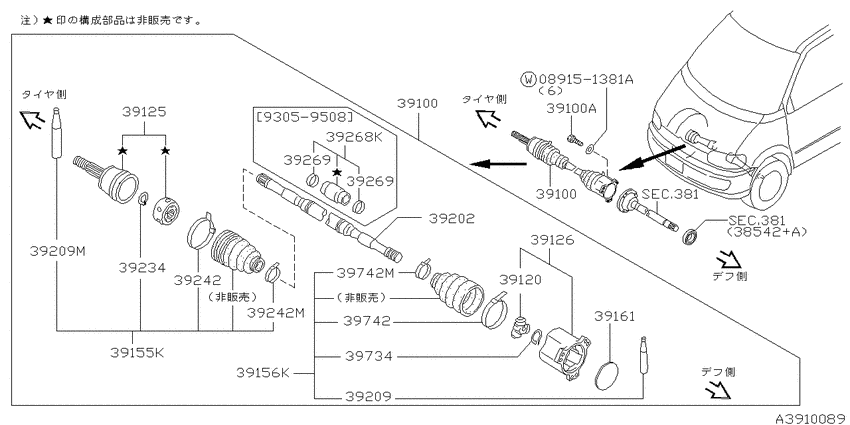

Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI) 12

#	OEM	Part name
39100	39100-1C110	Shaft Assy-Front Drive
39100	39106-50W00	Bolt
39120	39720-10V10	Spider Assy-Slide Joint
39120	39720-10V11	Spider Assy-Slide Joint
39120	39720-10V12	Spider Assy-Slide Joint
39125	39211-1C100	Joint Assy-Outer
39126	39711-35F10	Joint Assy-Inner
39202	39204-1C100	Shaft Sub Assy-Front Drive
39209	39709-55E25	GREASE-INNER
39209	39209-01A26	Grease-Outer
39209	39709-0E025	GREASE-INNER
39242	39242-01E12	BAND-RUBBER BOOT,SHAFT

OEM	Part name	Category
39100-1C110	Shaft Assy-Front Drive	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39106-50W00	Bolt	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39204-1C100	Shaft Sub Assy-Front Drive	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39209-01A26	Grease-Outer	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39211-1C100	Joint Assy-Outer	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39242-01E12	BAND-RUBBER BOOT,SHAFT	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39709-0E025	GREASE-INNER	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39709-55E25	GREASE-INNER	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39711-35F10	Joint Assy-Inner	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39720-10V10	Spider Assy-Slide Joint	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39720-10V11	Spider Assy-Slide Joint	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
39720-10V12	Spider Assy-Slide Joint	Front drive shaft (ff) (1996-10-01 ~ 1997-10-01; 右用; KA24DE +CD20TI)
